Install Nest

INFO

To learn about Nest and its components, see Nest.

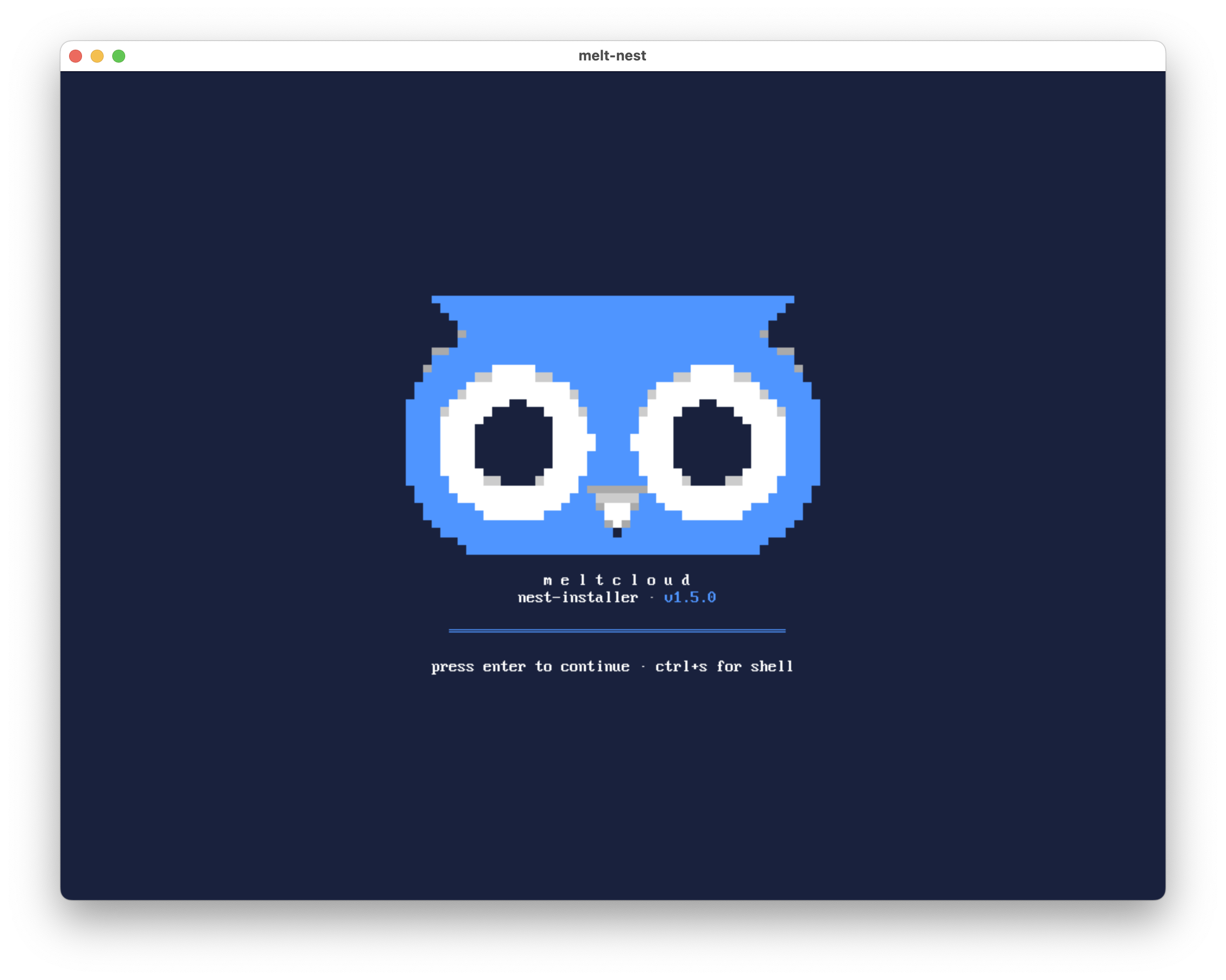

The Nest installer is a terminal-based wizard that guides you through configuring and installing the management appliance. It runs in 7 steps.

Prerequisites

• A physical or virtual machine with at least 200 GiB disk space
• Boot the machine from the Nest installer ISO
• Have the following information ready:
  • 3 free IP addresses in your network for the load balancer VIPs
  • A domain (or wildcard domain) resolving to the Foundry VIP
  • For airgapped installations using your own registry, reach out to us for options.

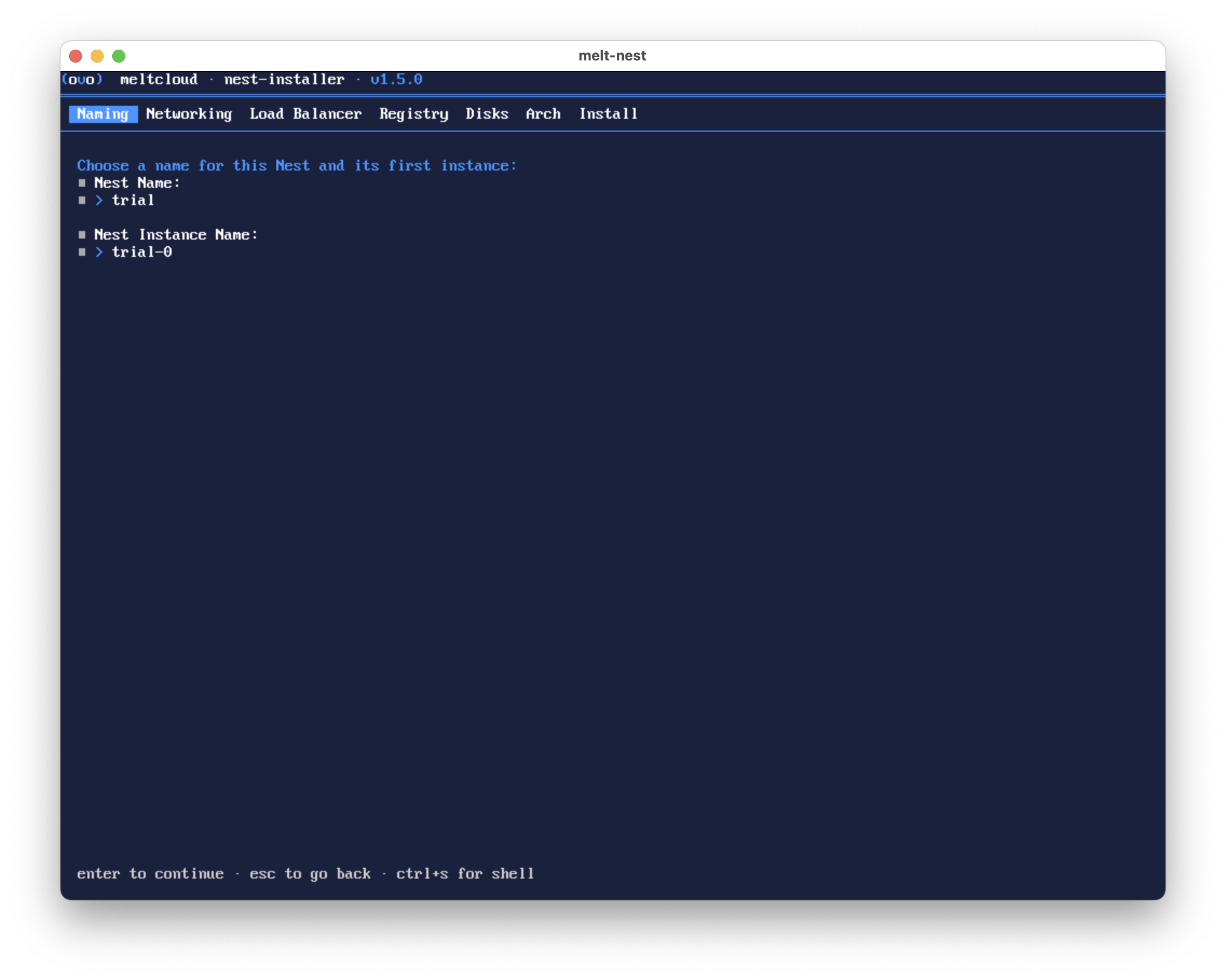

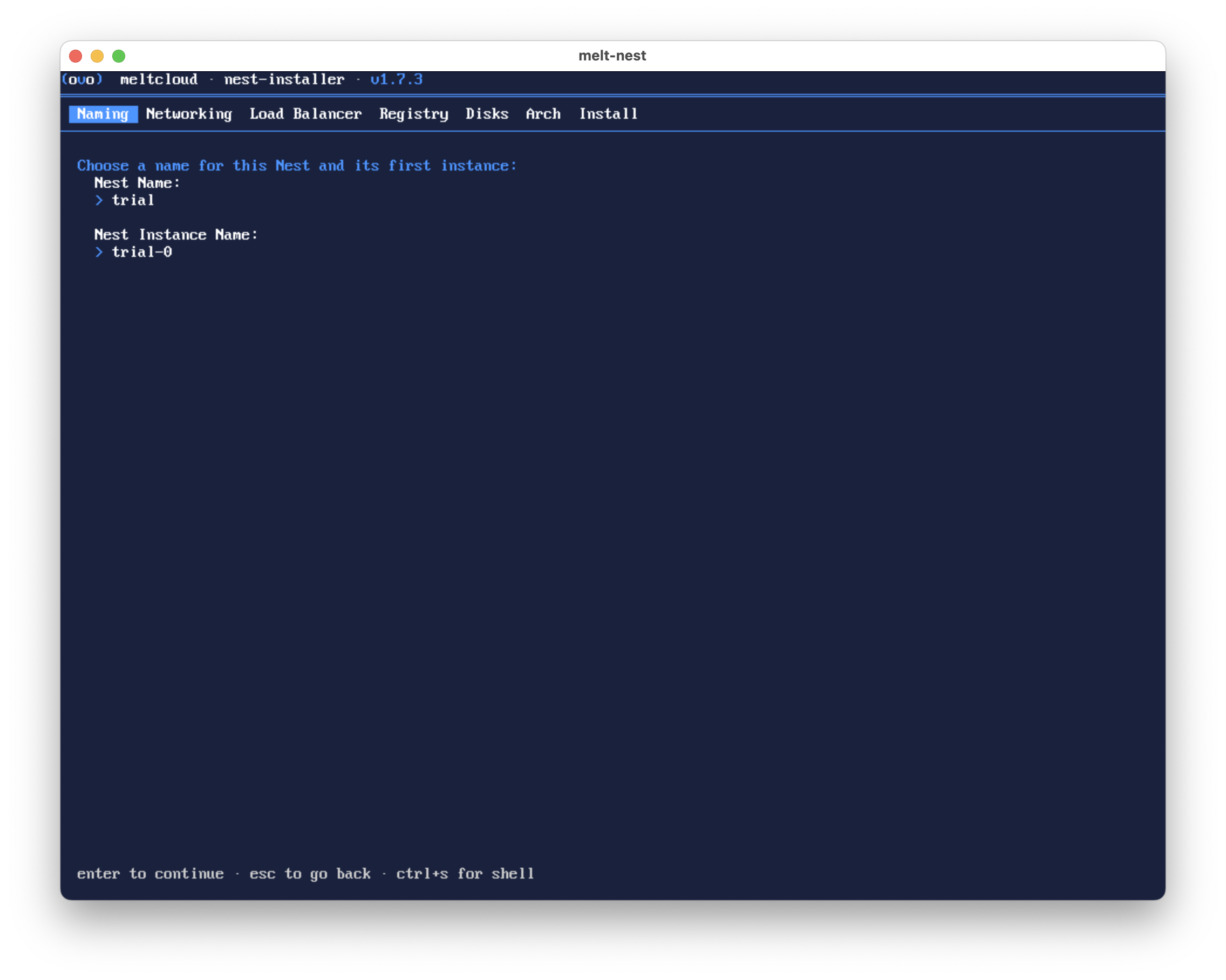

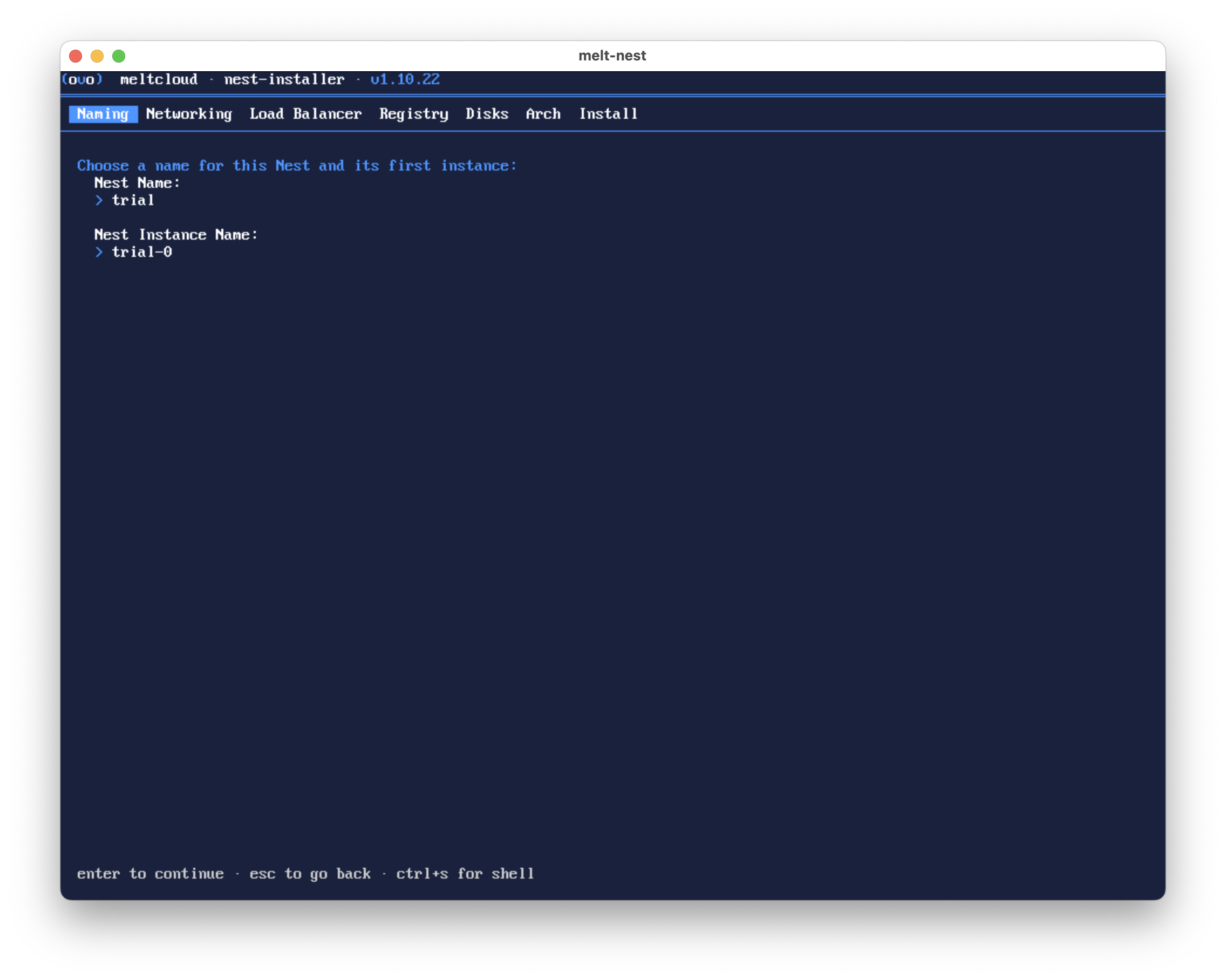

1. Naming

Set the Nest cluster name and the name for this specific instance.

TIP

These names are informational only and do not affect the installation.

Property	Description	Default	Required
Nest Name	Identifier for the Nest cluster	trial	Yes
Nest Instance Name	Identifier for this specific Nest host	trial-0	Yes

2. Host Networking

Configure how the Nest appliance connects to your network.

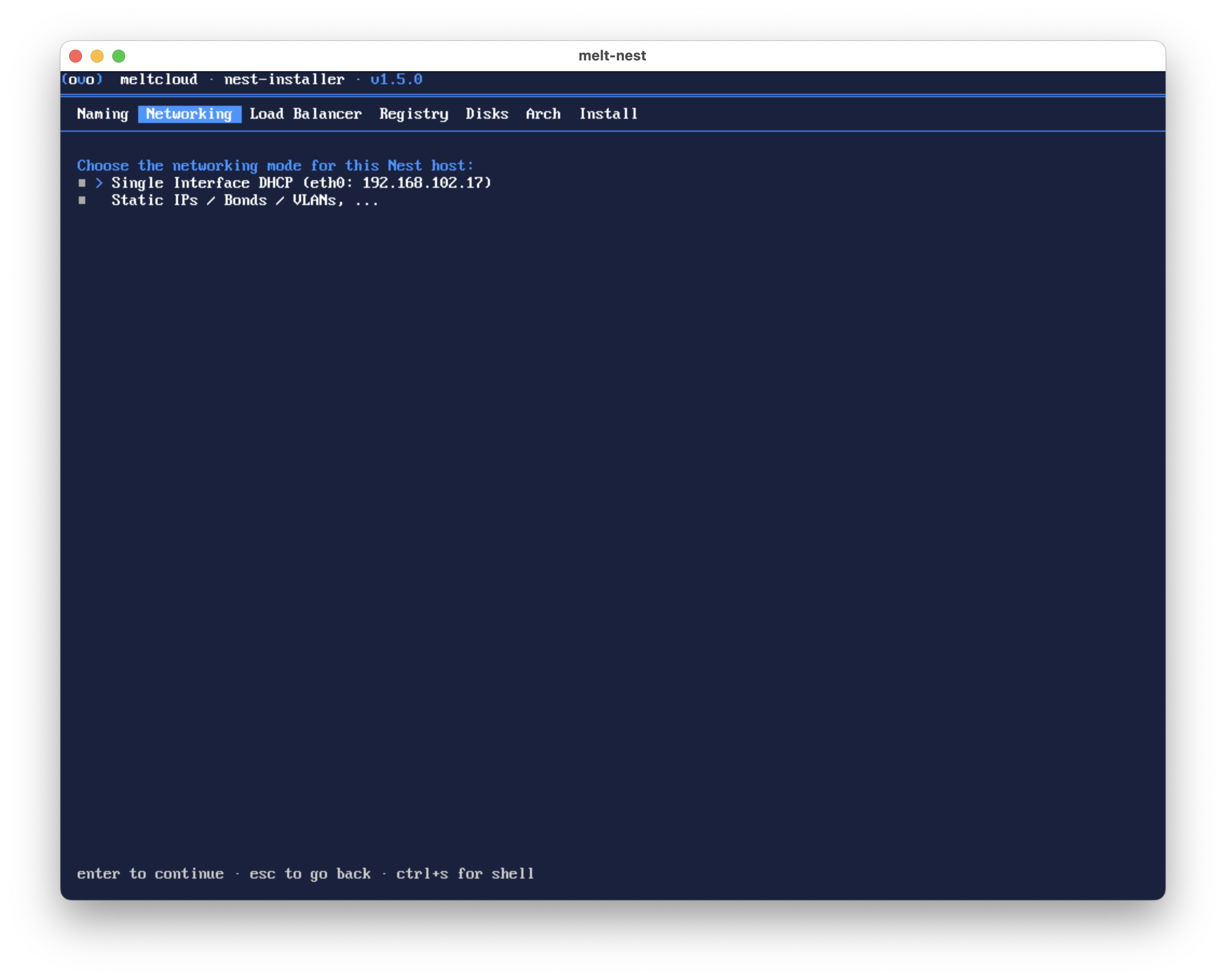

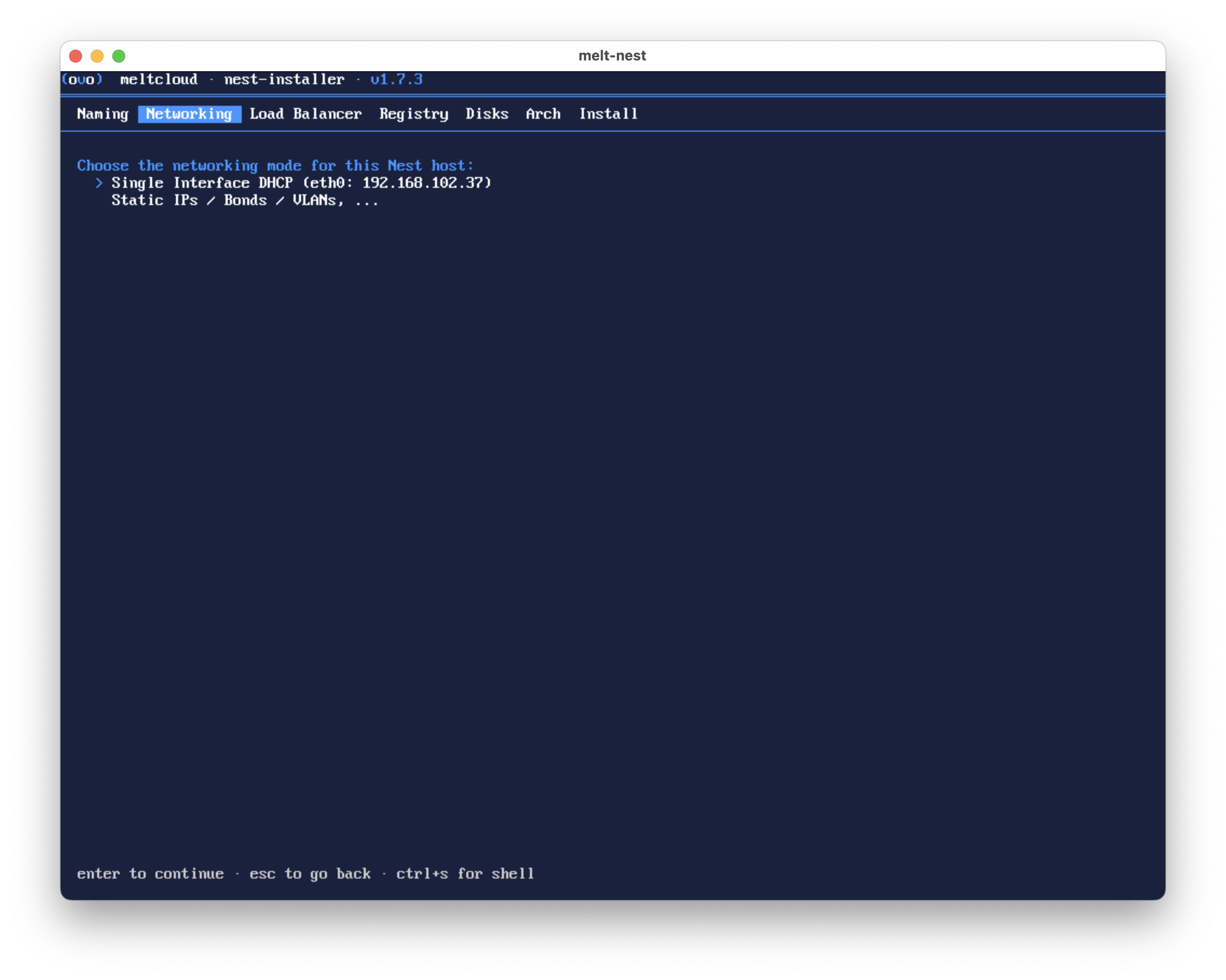

Network Mode

Choose between simple (DHCP) or advanced (static IP) networking.

WARNING

Nest requires IP addresses to be fixed. DHCP should only be used for trials, where most virtualization platforms (tart, UTM, QEMU, libvirt) treat DHCP leases as static enough for playing around. Hyper-V and VMware Workstation do not, so use static IPs with those.

Option	Description
Single Interface DHCP	Uses DHCP on a single interface. Only suitable for trials (see note below).

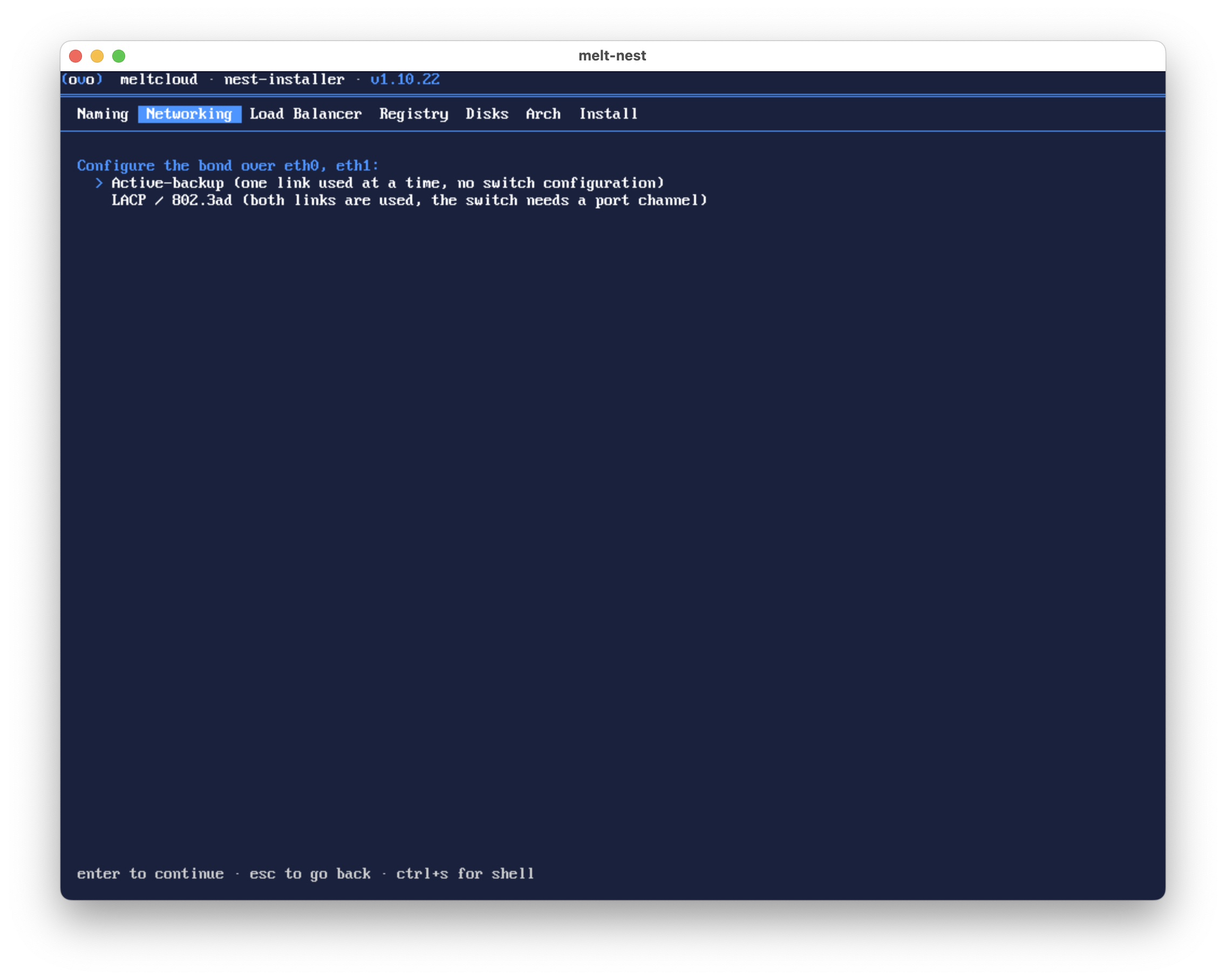

Static IPs / Bonds / VLANs	Manual IP configuration. Required for production environments.

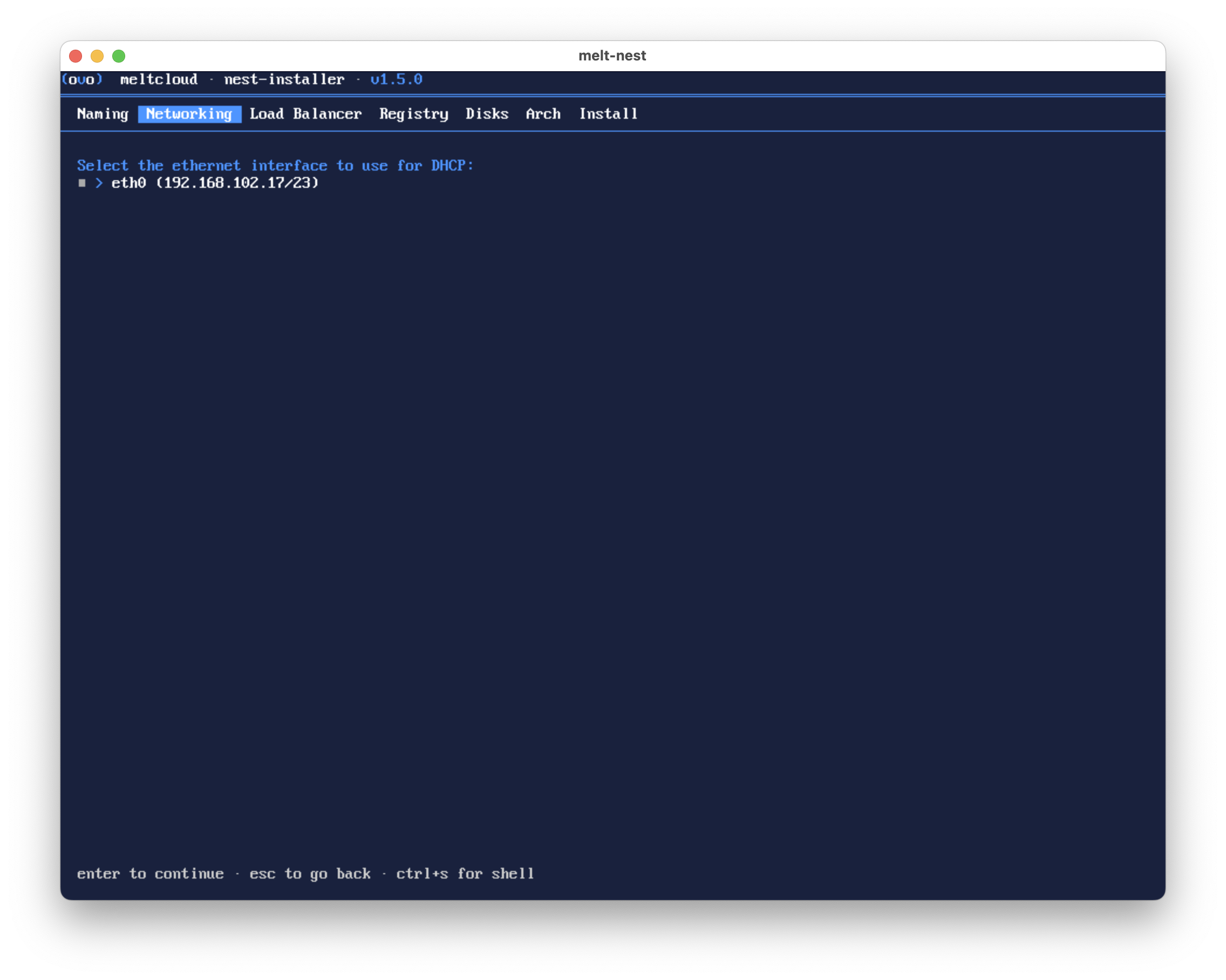

DHCP: Interface Selection

If DHCP is selected, choose which network interface to use.

The installer lists all available network interfaces with their current IP addresses (if any).

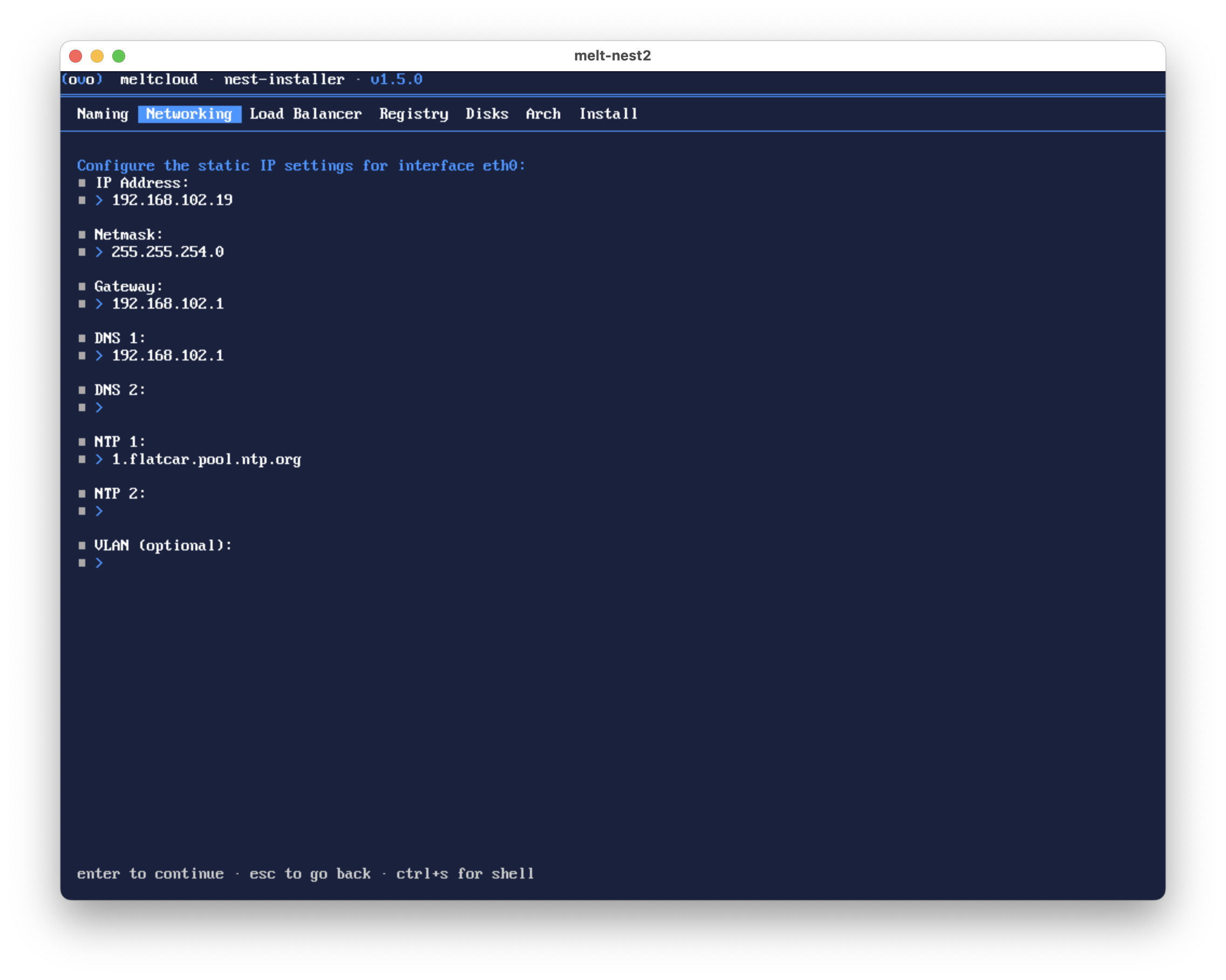

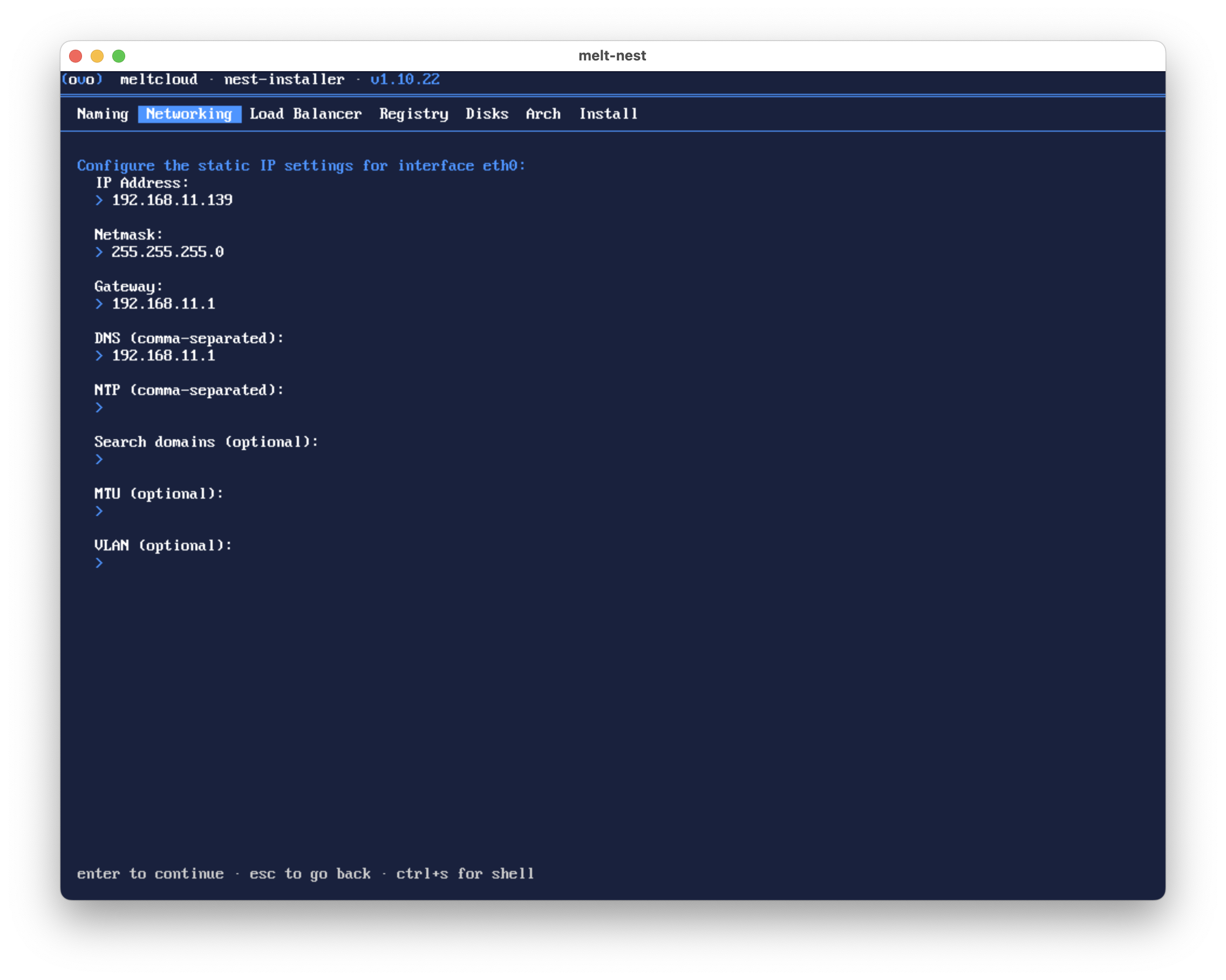

Static IP Configuration

If static networking is selected, configure the network manually after choosing an interface.

Property	Description	Default	Required
IP Address	IPv4 address for the Nest host	Current interface IP	Yes
Netmask	Subnet mask	Detected from interface	Yes
Gateway	Default gateway	Detected from routing table	Yes
DNS 1	Primary DNS server	Detected from system	Yes
DNS 2	Secondary DNS server		No
NTP 1	Primary NTP server	Detected from system	Yes
NTP 2	Secondary NTP server		No
VLAN	VLAN ID (1-4094) for tagged interface		No

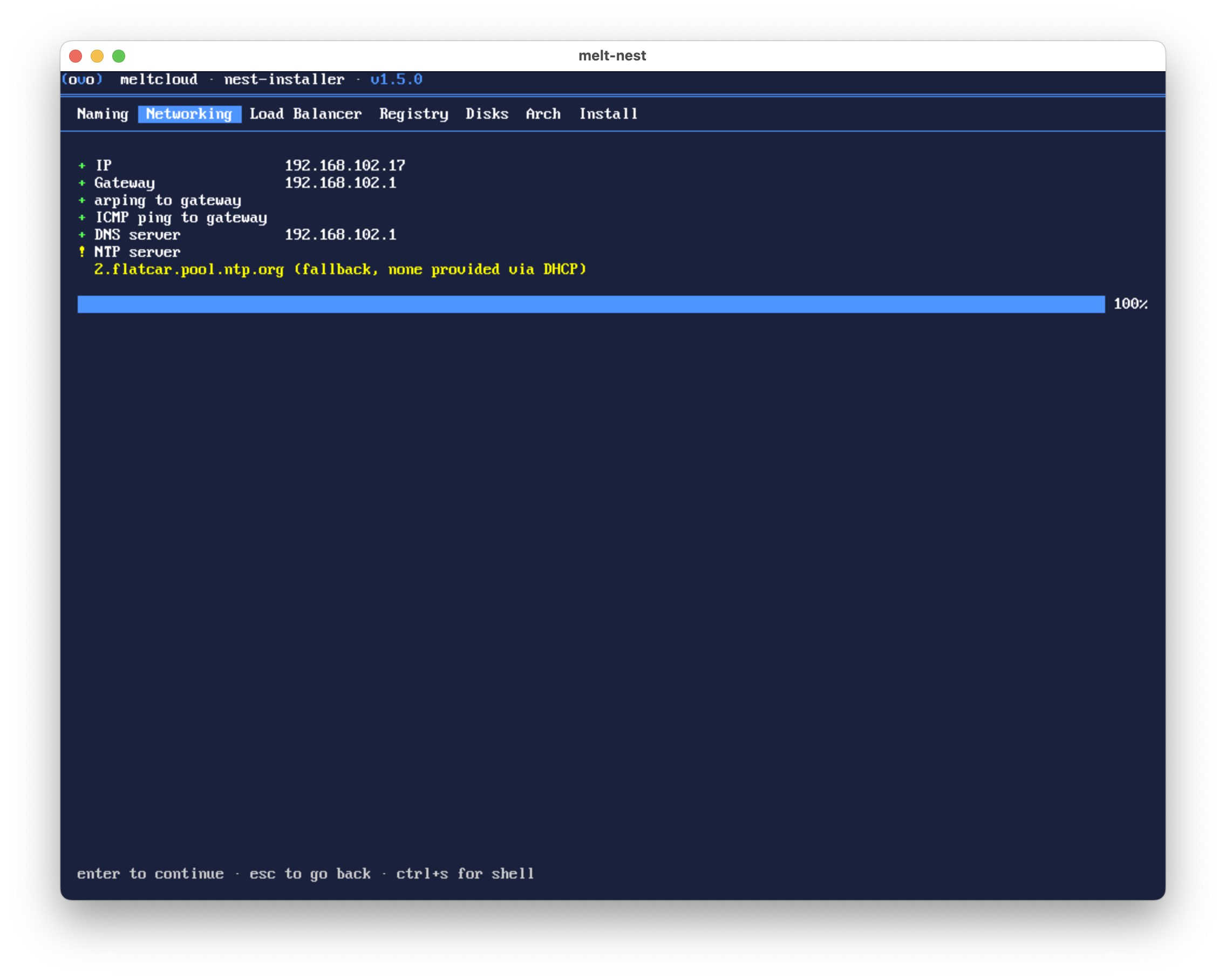

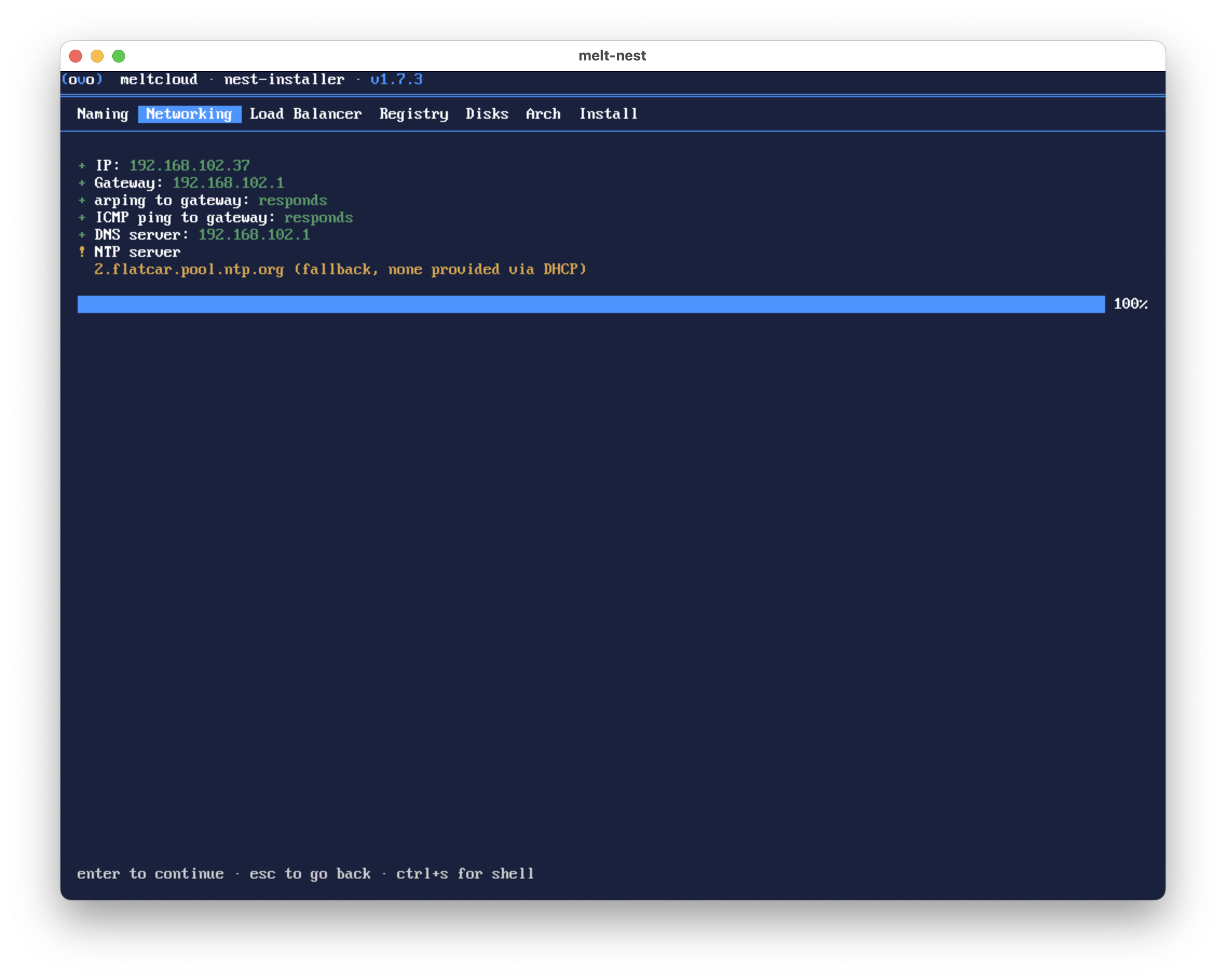

Network Validation

The installer validates network connectivity:

• IP address is configured on the interface
• Gateway is reachable (ARP and ICMP)
• DNS server is configured
• NTP server is accessible

TIP

Many environments do not distribute NTP via DHCP, so the validation may show a warning with a fallback NTP server that might not be reachable. This is fine for trials, but for production, configure a reachable NTP server using static networking.

TIP

Some environments (e.g. Hyper-V) do not respond to ICMP pings on the primary gateway. If the ICMP ping check shows a warning but ARP succeeds, this can be safely ignored.

3. Load Balancer

Configure the load balancer VIPs and domain for the Nest services.

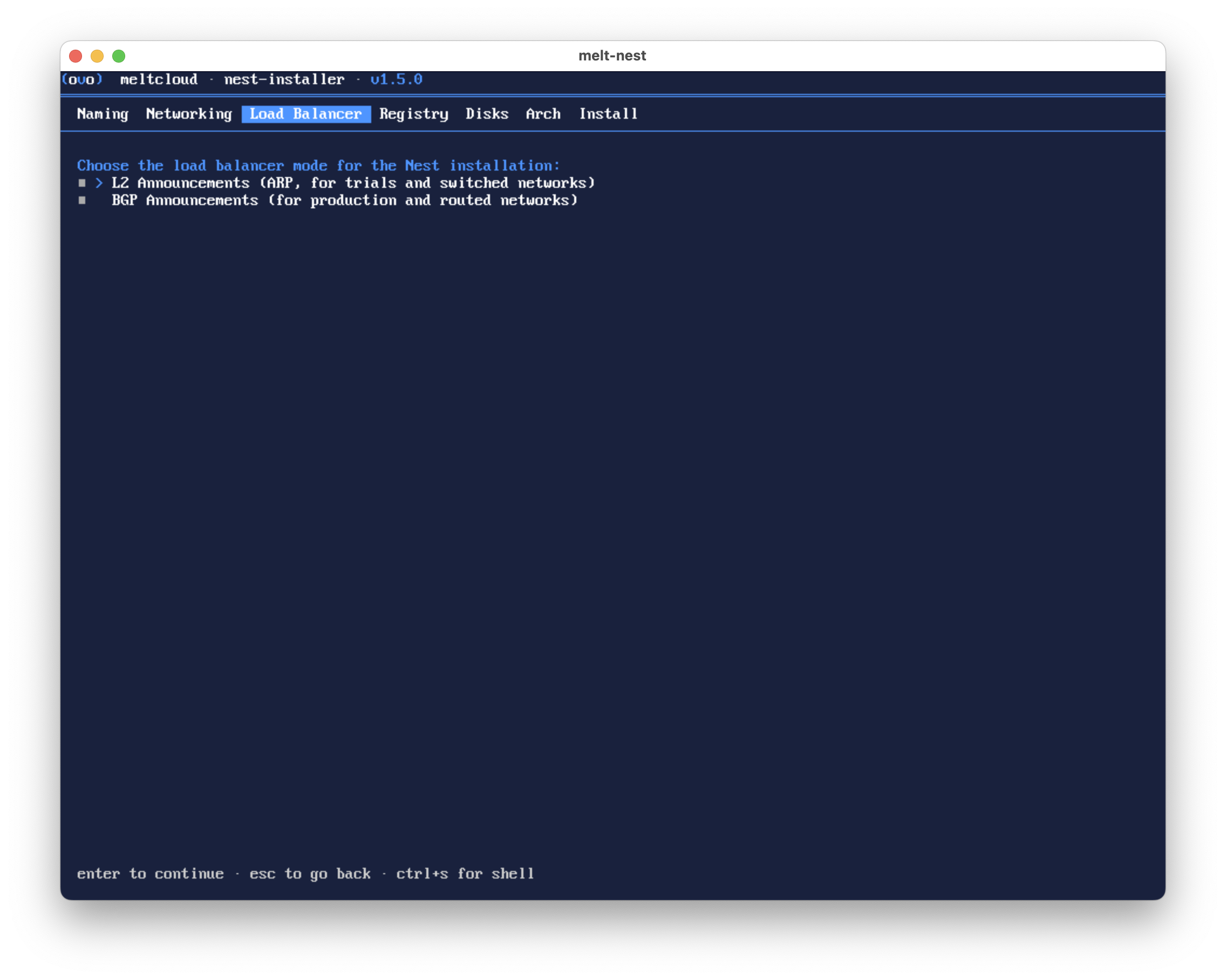

Announcement Mode

Option	Description
L2 Announcements	Uses ARP announcements. For trials and switched networks.
BGP Announcements	Announces the VIPs to a BGP peer. For production and routed networks.

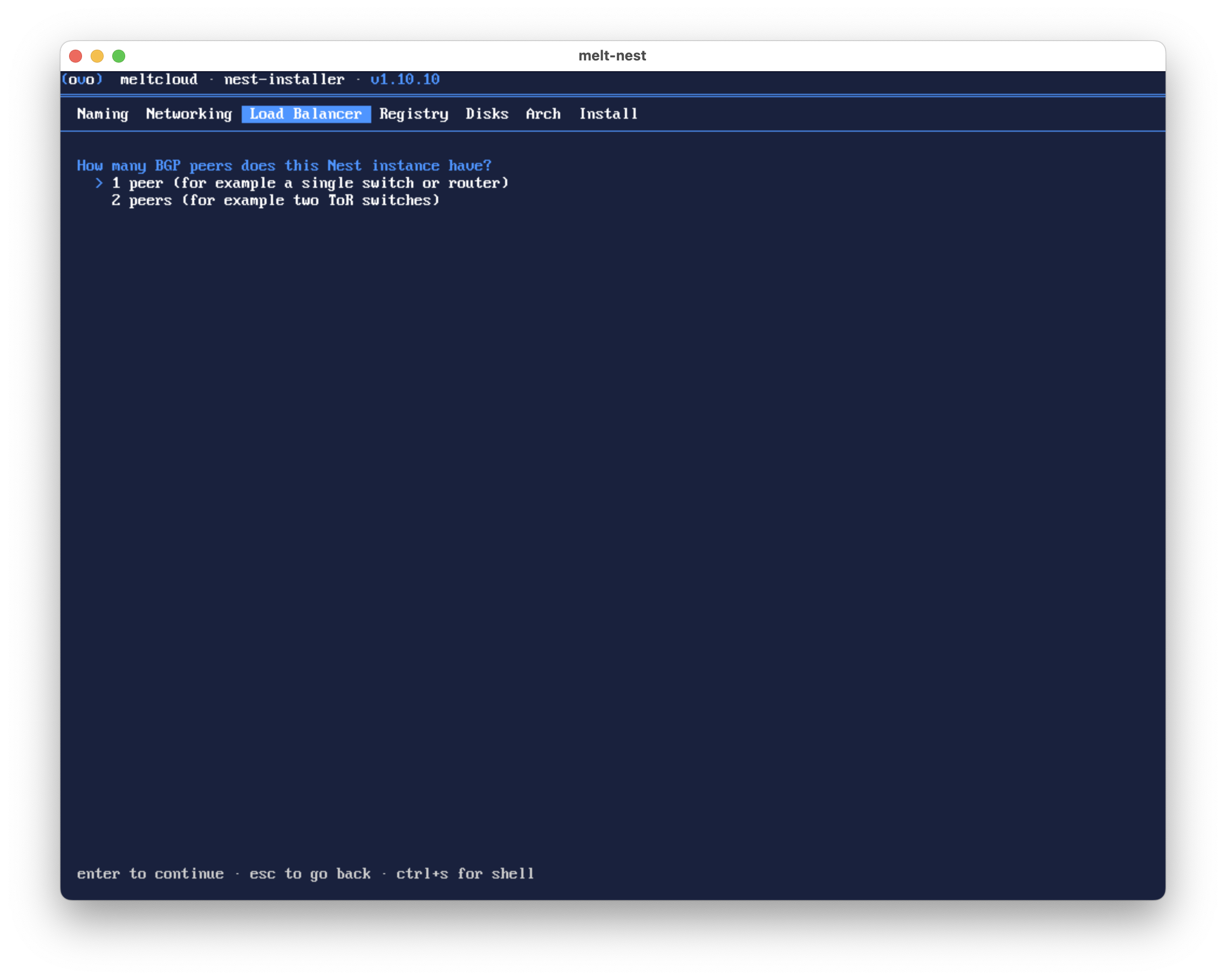

The mode applies to the whole Nest. The BGP peering settings below are configured per Nest instance, so each instance can peer with the switch or router it is attached to.

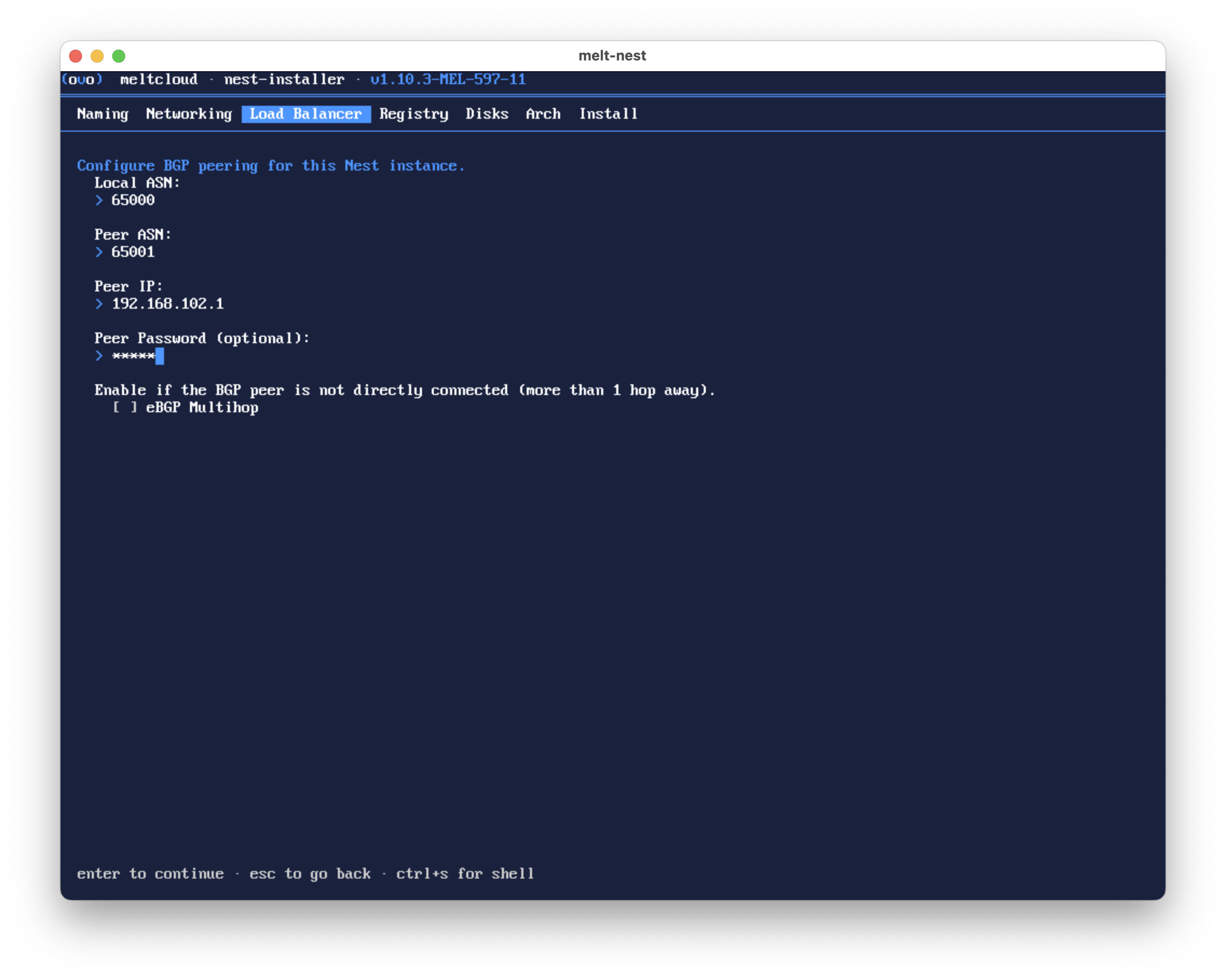

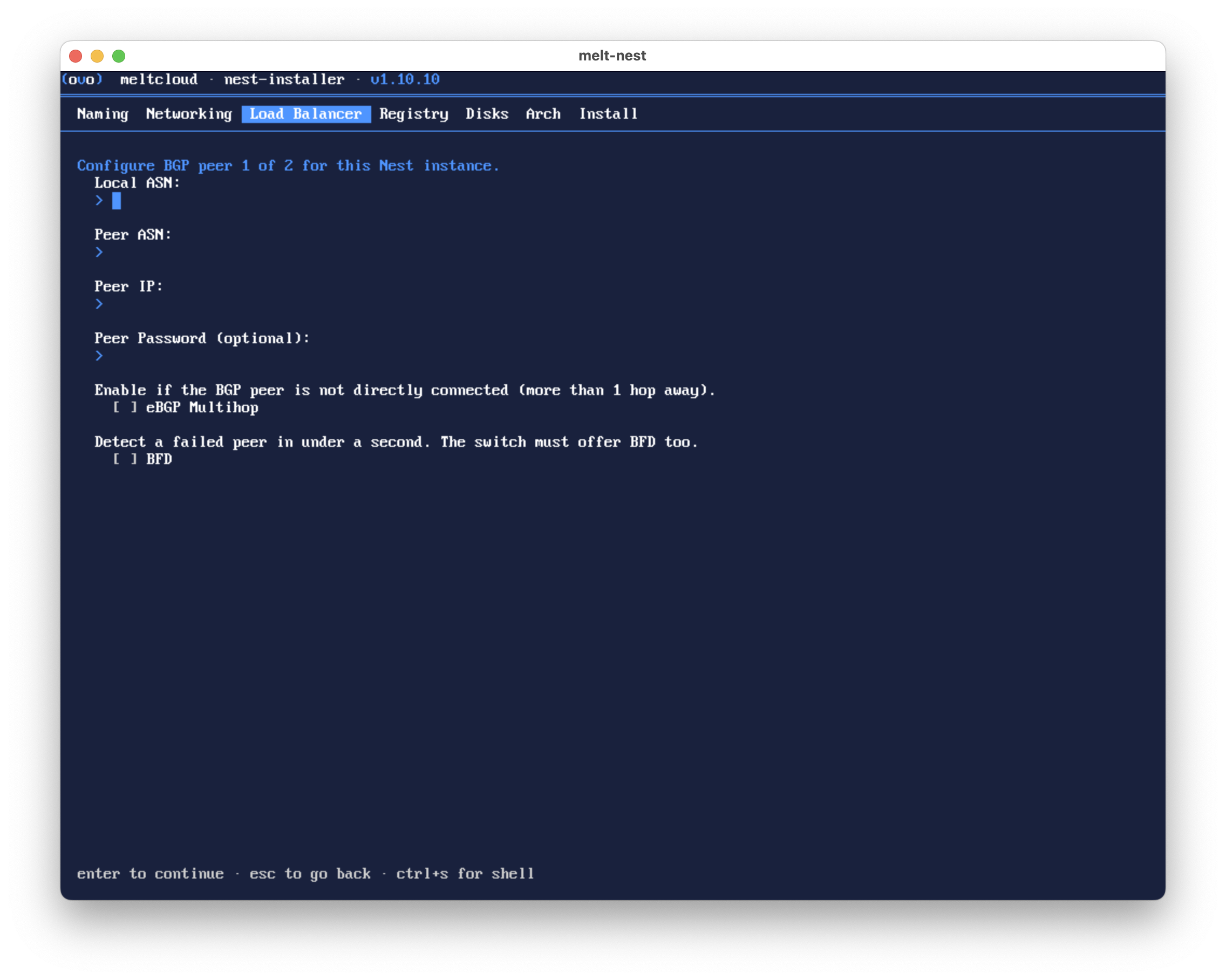

BGP Peering

Only shown when the announcement mode is BGP Announcements. Configure the peering for this Nest instance.

Property	Description	Required
Local ASN	The autonomous system number of this Nest instance	Yes
Peer ASN	The autonomous system number of the peer	Yes
Peer IP	The IP address of the peer	Yes
Peer Password	MD5 authentication password, if the peer requires one	No
eBGP Multihop	Enable if the peer is not directly connected (more than 1 hop away)	No

TIP

The peer must be configured to accept a session from this Nest instance before the peering can come up. See Network Requirements (self-hosted) for the connectivity this needs.

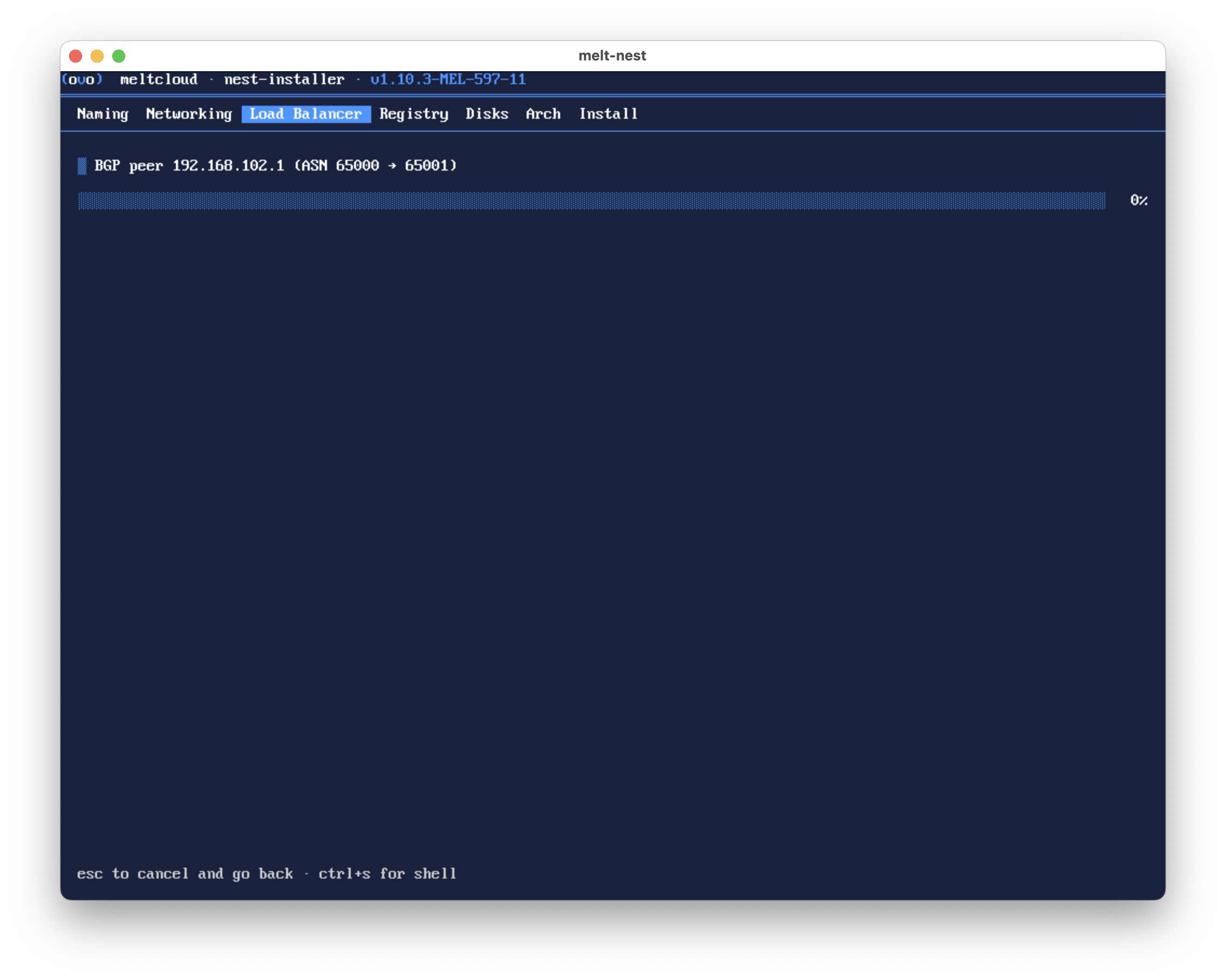

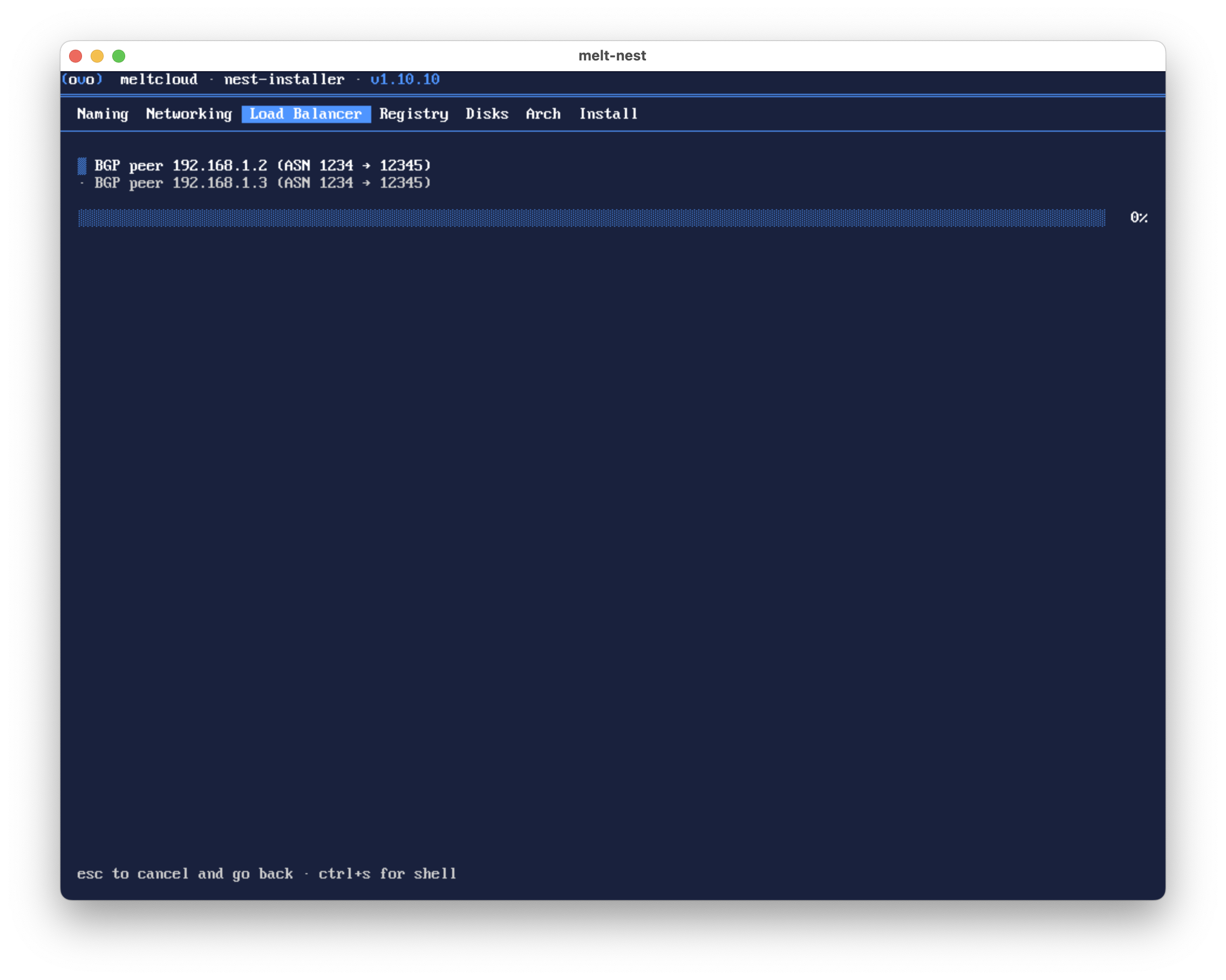

BGP Peering Validation

The installer opens a BGP session to the configured peer and waits up to 15 seconds for it to reach the ESTABLISHED state.

If the session does not come up, you can either go back and correct the settings, or continue with the installation. Continuing is useful when the peer is not configured yet: the installation does not depend on the session, and the Nest keeps retrying it once installed. Until the session is up, the VIPs are not announced to your network.

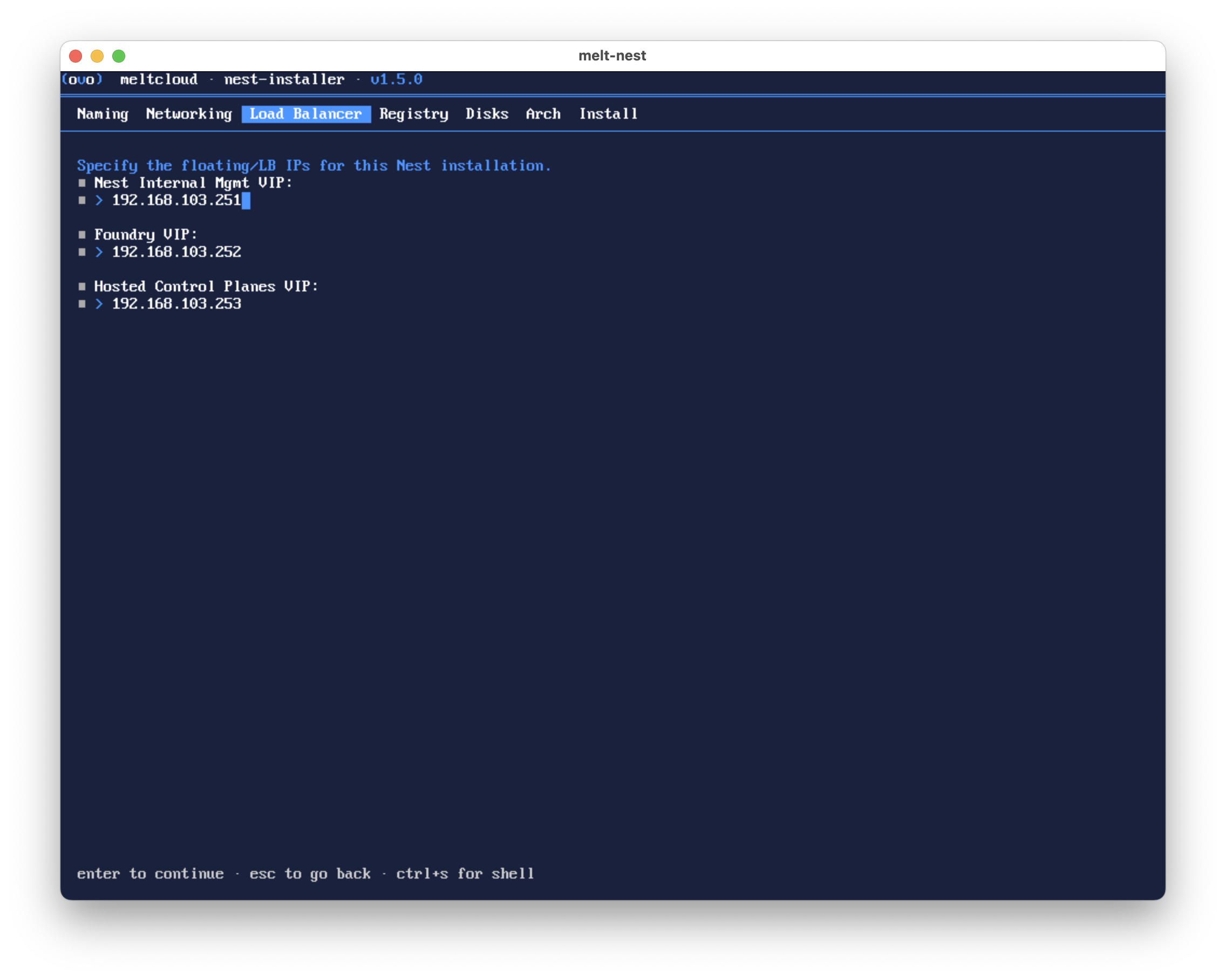

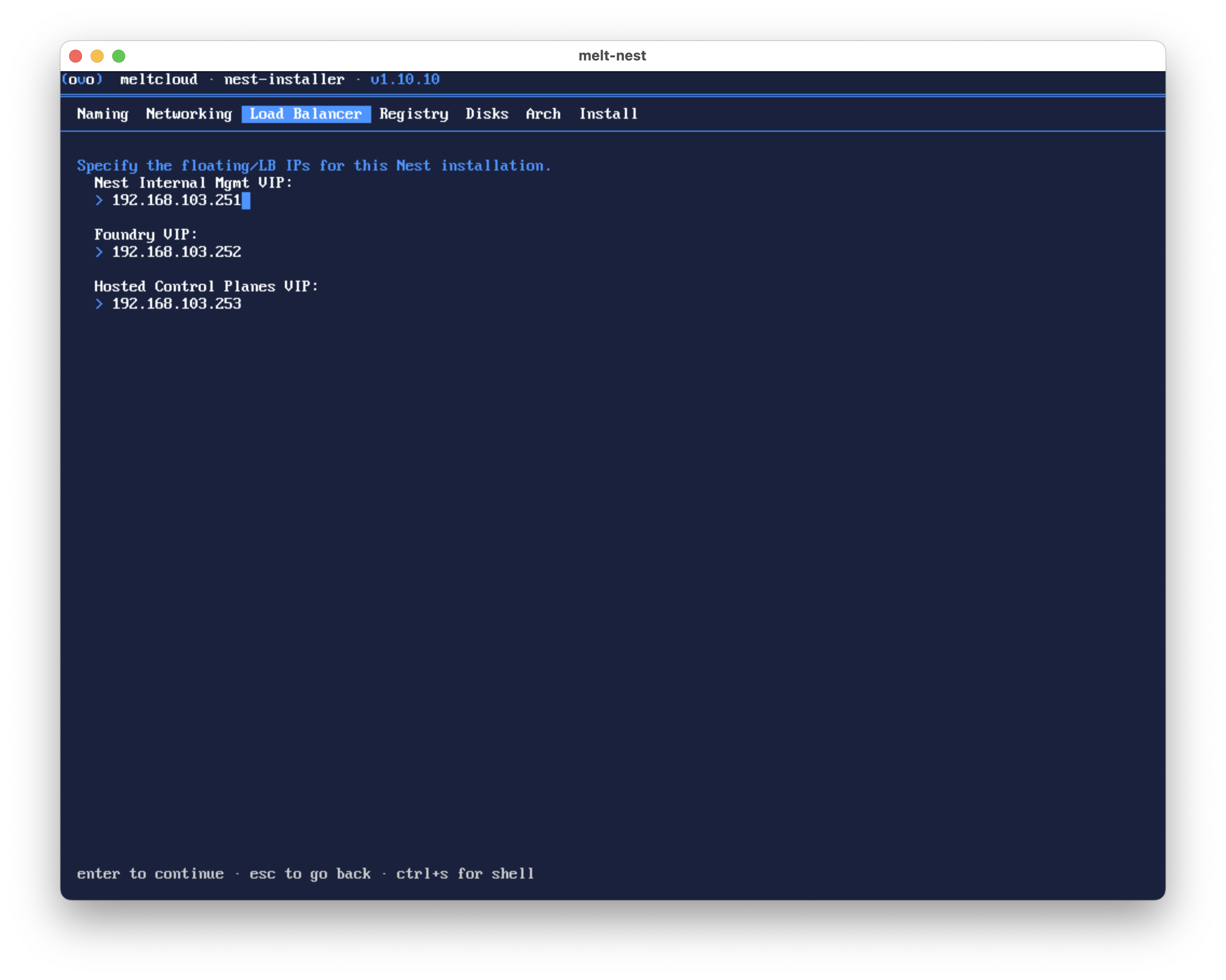

VIP Addresses

Three dedicated IP addresses are required for the Nest services. These must be free (not in use) in your network.

Property	Description	Default	Required
Nest Internal Mgmt VIP	Internal management traffic	Auto-calculated from host subnet	Yes
Foundry VIP	Web UI, API and agent connectivity	Auto-calculated from host subnet	Yes
Hosted Control Planes VIP	Kubernetes API endpoints for hosted clusters	Auto-calculated from host subnet	Yes

TIP

The installer suggests IPs near the top of your subnet (e.g. .251, .252, .253 for a /24). Make sure these are not assigned by DHCP or used by other hosts.

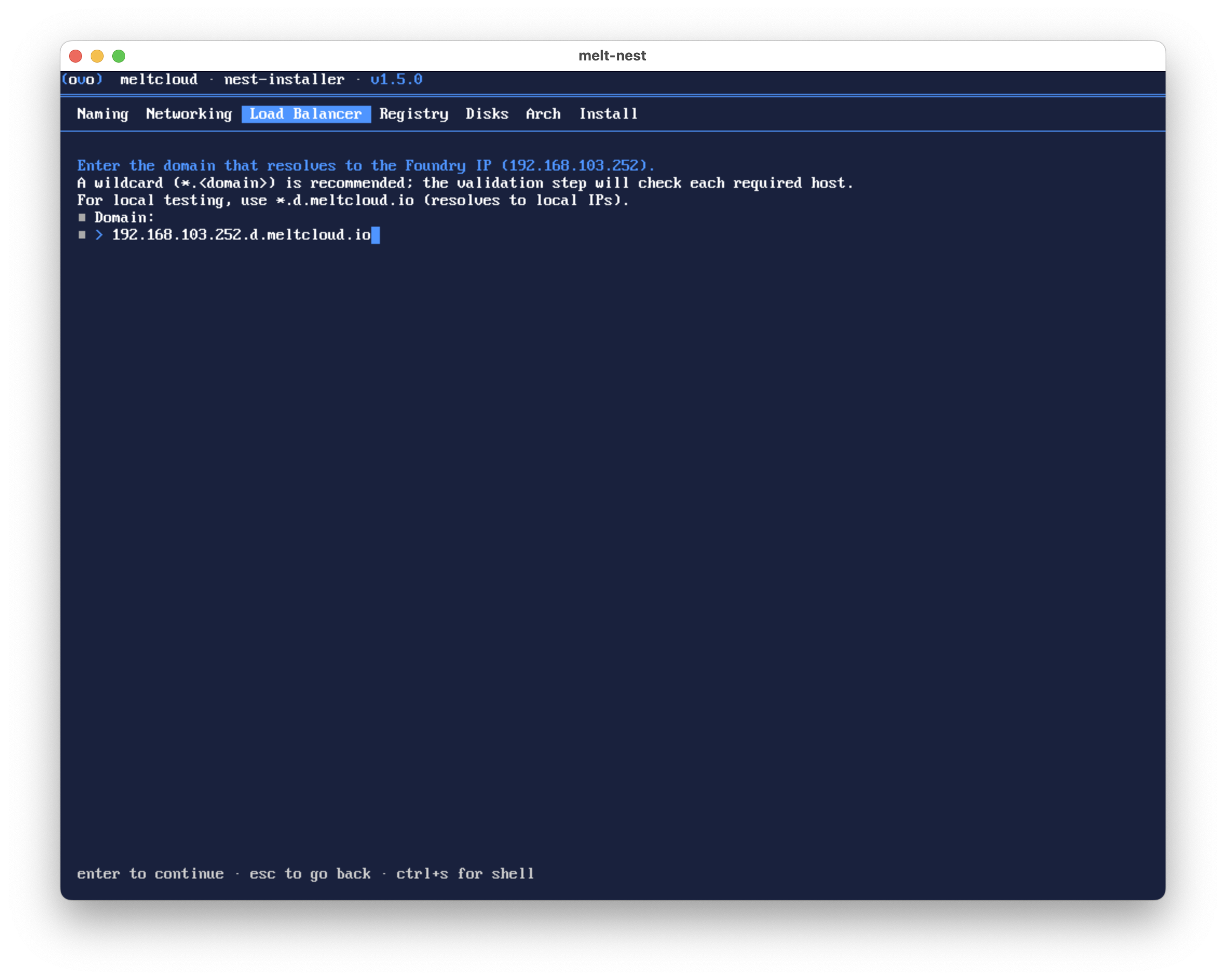

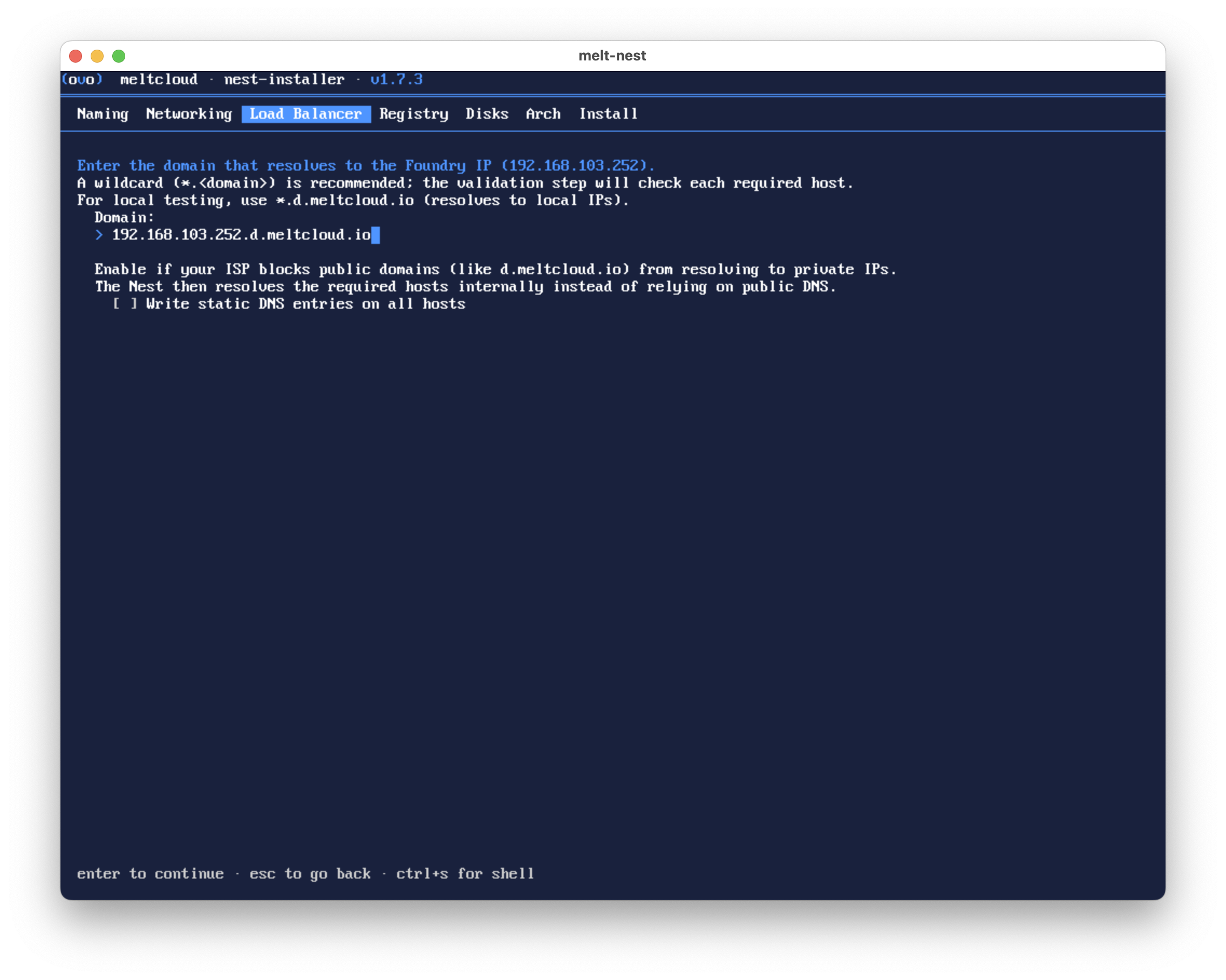

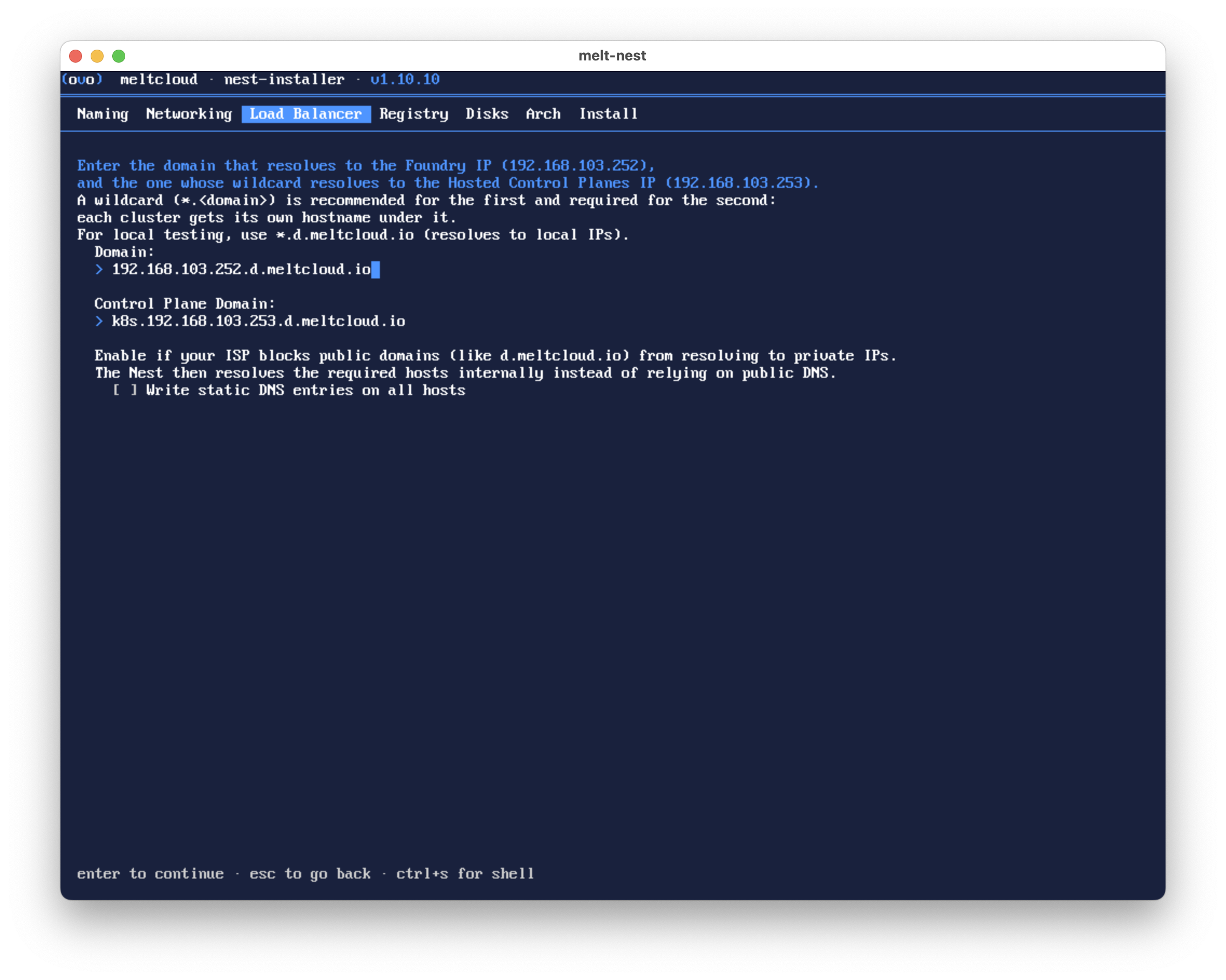

Foundry Domain

The domain that resolves to the Foundry VIP. A wildcard domain is recommended, i.e. resolve *.{domain} to the Foundry VIP. The apex domain itself does not need to resolve. Alternatively, create individual DNS entries for the required subdomains listed below.

Property	Description	Default	Required
Domain	Domain resolving to the Foundry VIP	{foundry_vip}.d.meltcloud.io	Yes
Write static DNS entries on all hosts	Resolve required subdomains internally via CoreDNS / /etc/hosts. Not recommended for production, see Cannot Resolve *.d.meltcloud.io.	Off	No

The following subdomains must resolve to the Foundry VIP:

• app.{domain}
• agent.{domain}
• pkg.{domain}
• pkg-push.{domain}
• minio.{domain}
• minio-api.{domain}

TIP

For local testing, use the suggested {foundry_vip}.d.meltcloud.io domain which resolves to local IPs.

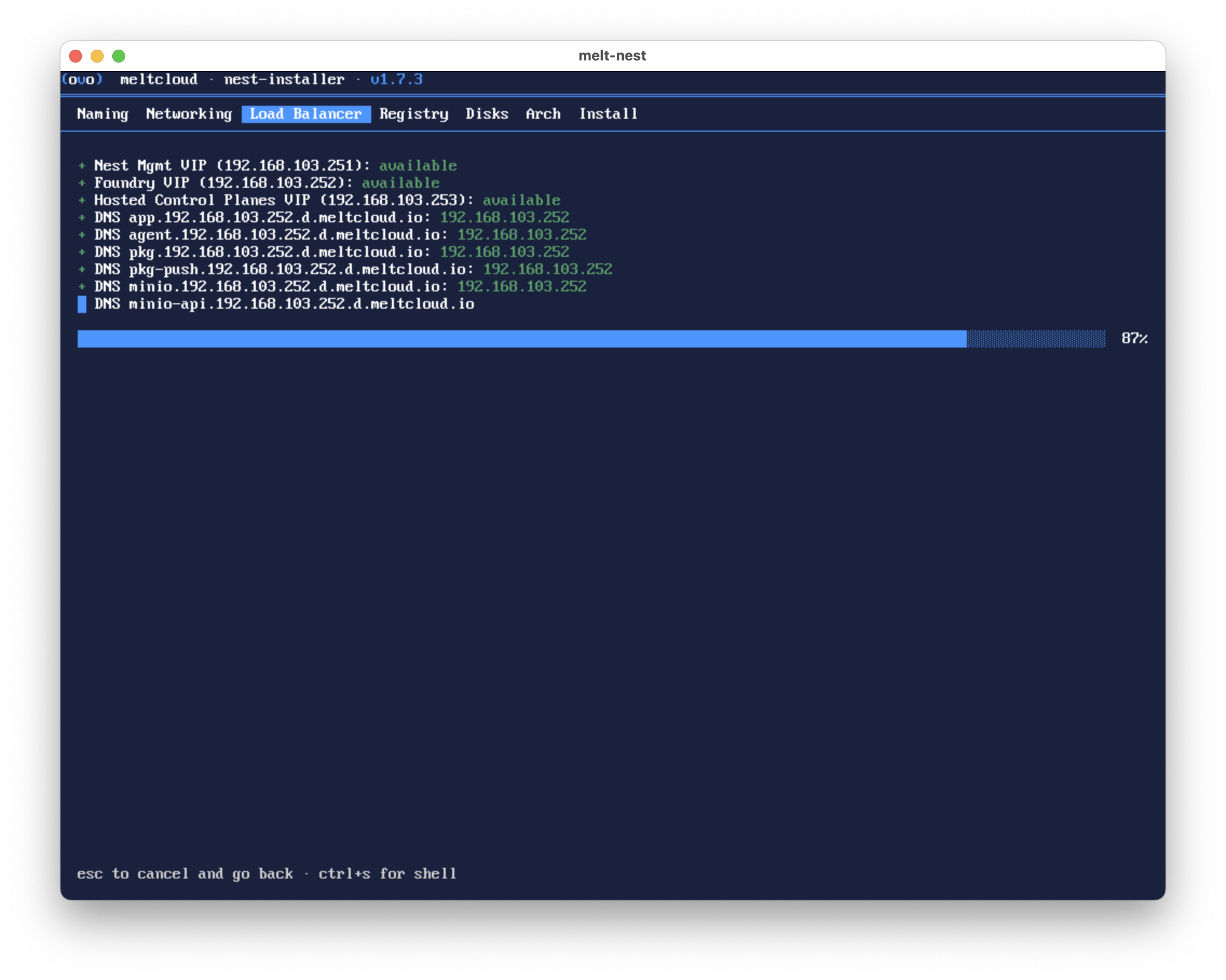

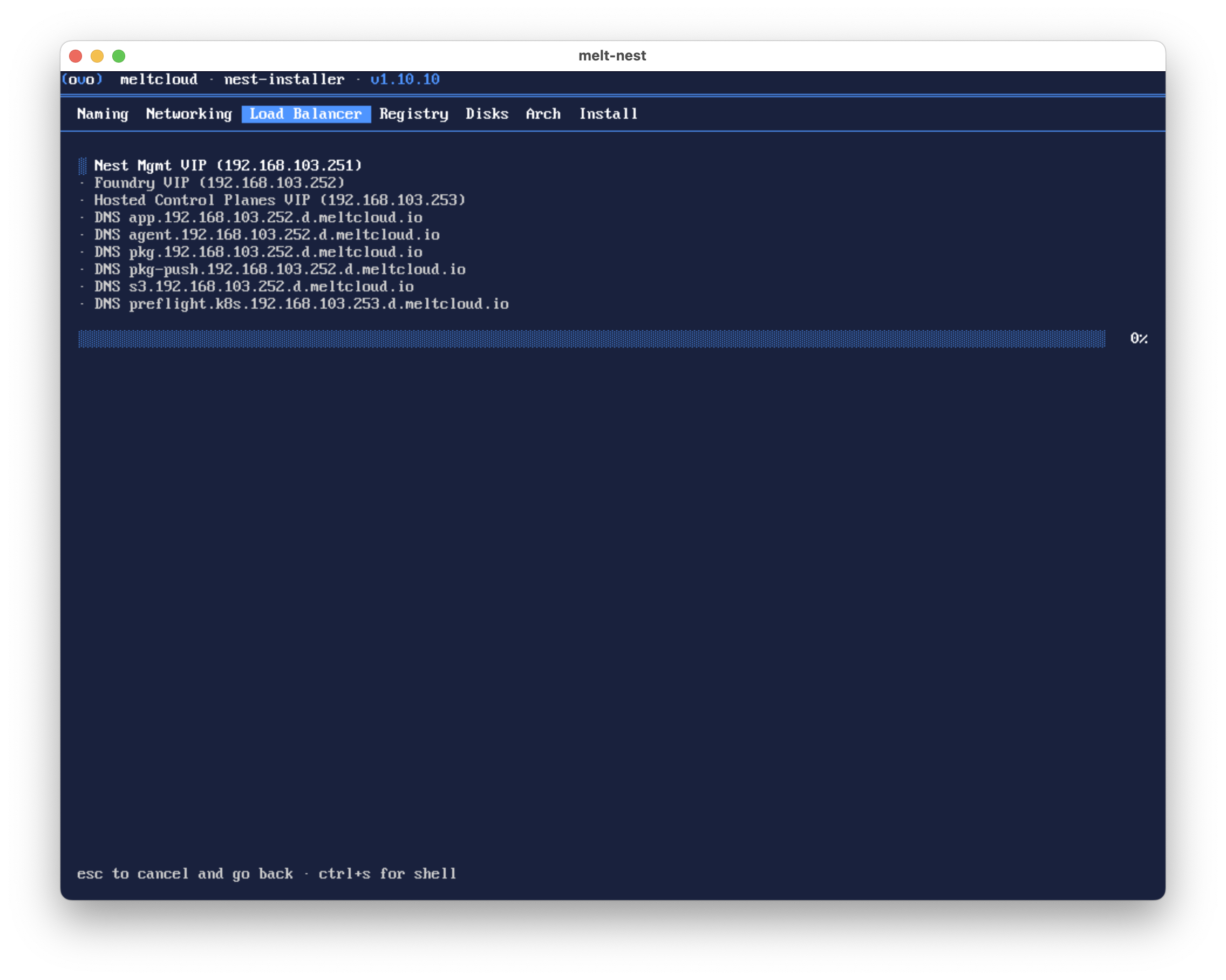

Load Balancer Validation

The installer validates:

• Each VIP is not already in use (via ARP probes)
• All required subdomains resolve to the Foundry VIP

4. Registry

Configure the container registry that Nest will use to pull images.

TIP

The credentials for artifacts.meltcloud.io are already baked into the installer ISO. You only need to change the registry settings for airgapped installations using your own registry.

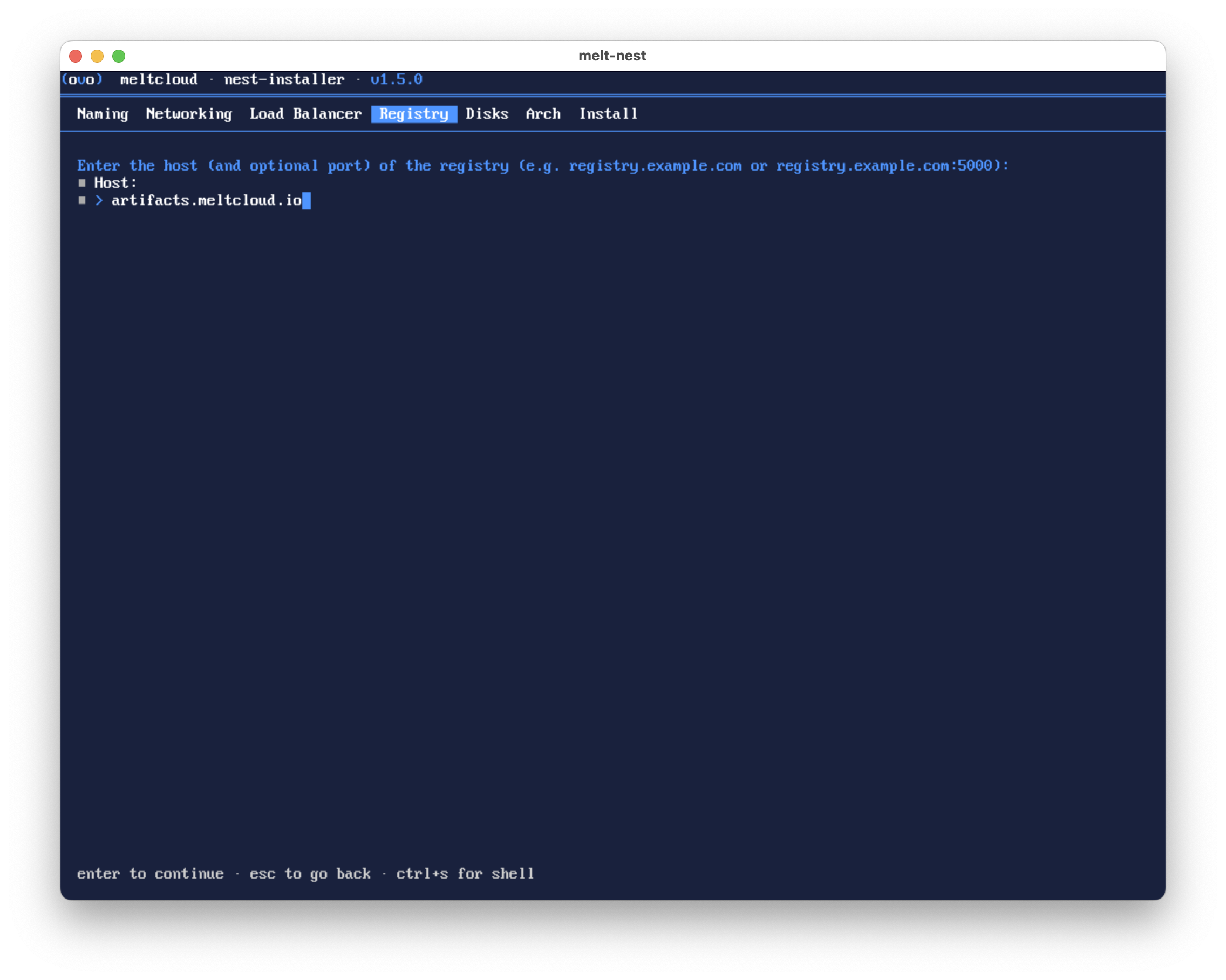

Registry Host

Property	Description	Default	Required
Host	Registry hostname, optionally with port	registry.example.com	Yes

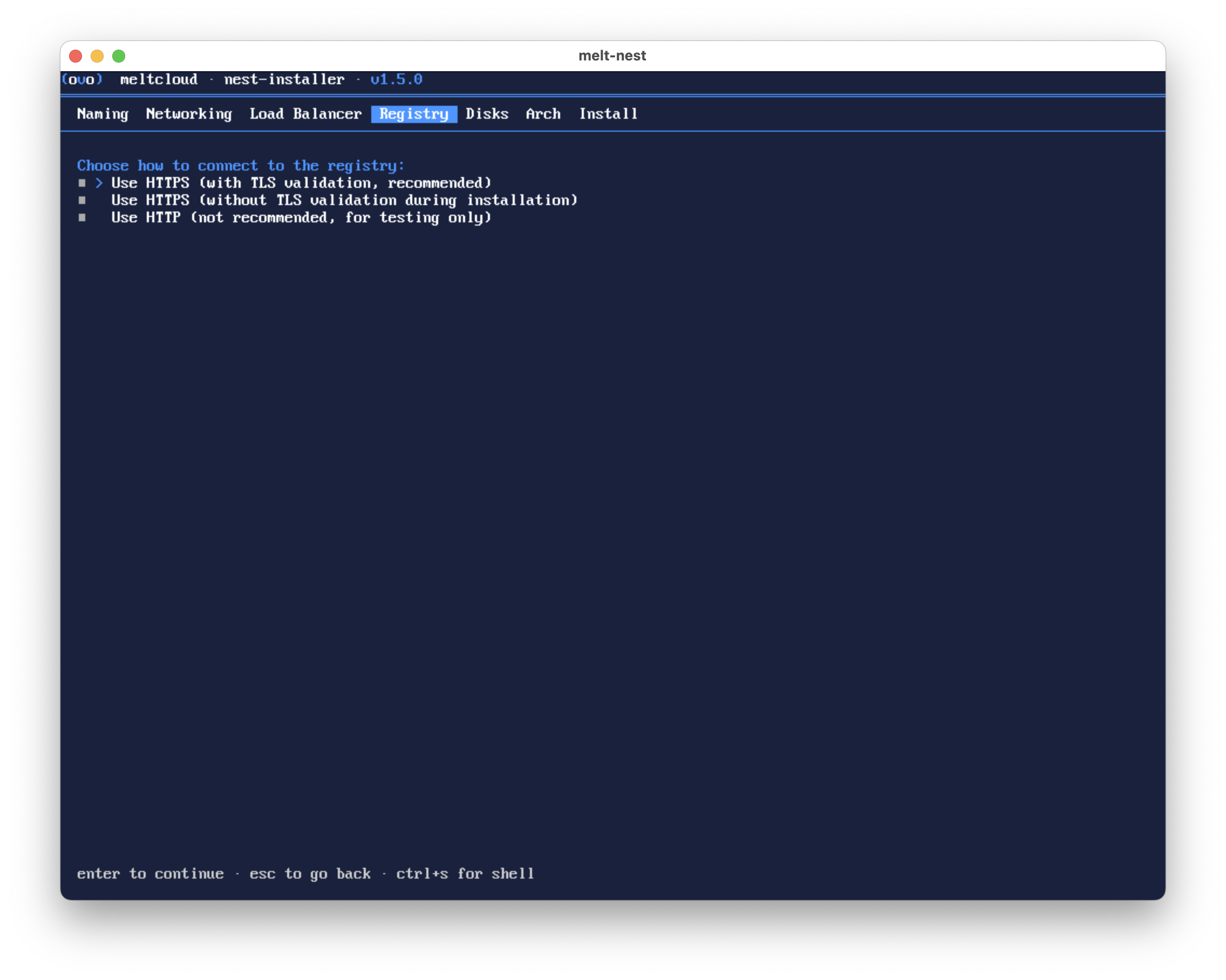

Protocol

Option	Description
HTTPS (with TLS validation)	Recommended for production.
HTTPS (without TLS validation)	For self-signed certificates.
HTTP	Not recommended, for testing only.

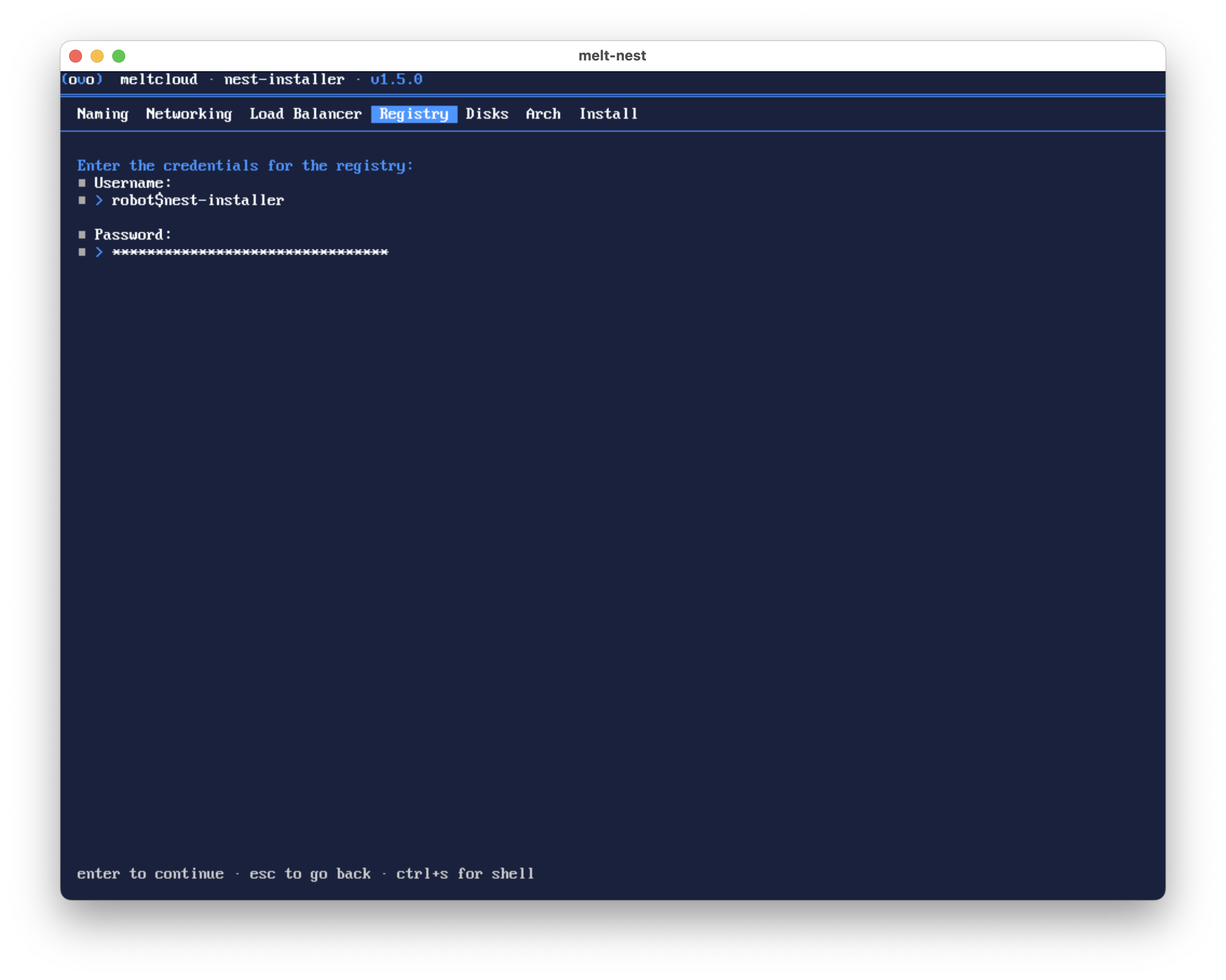

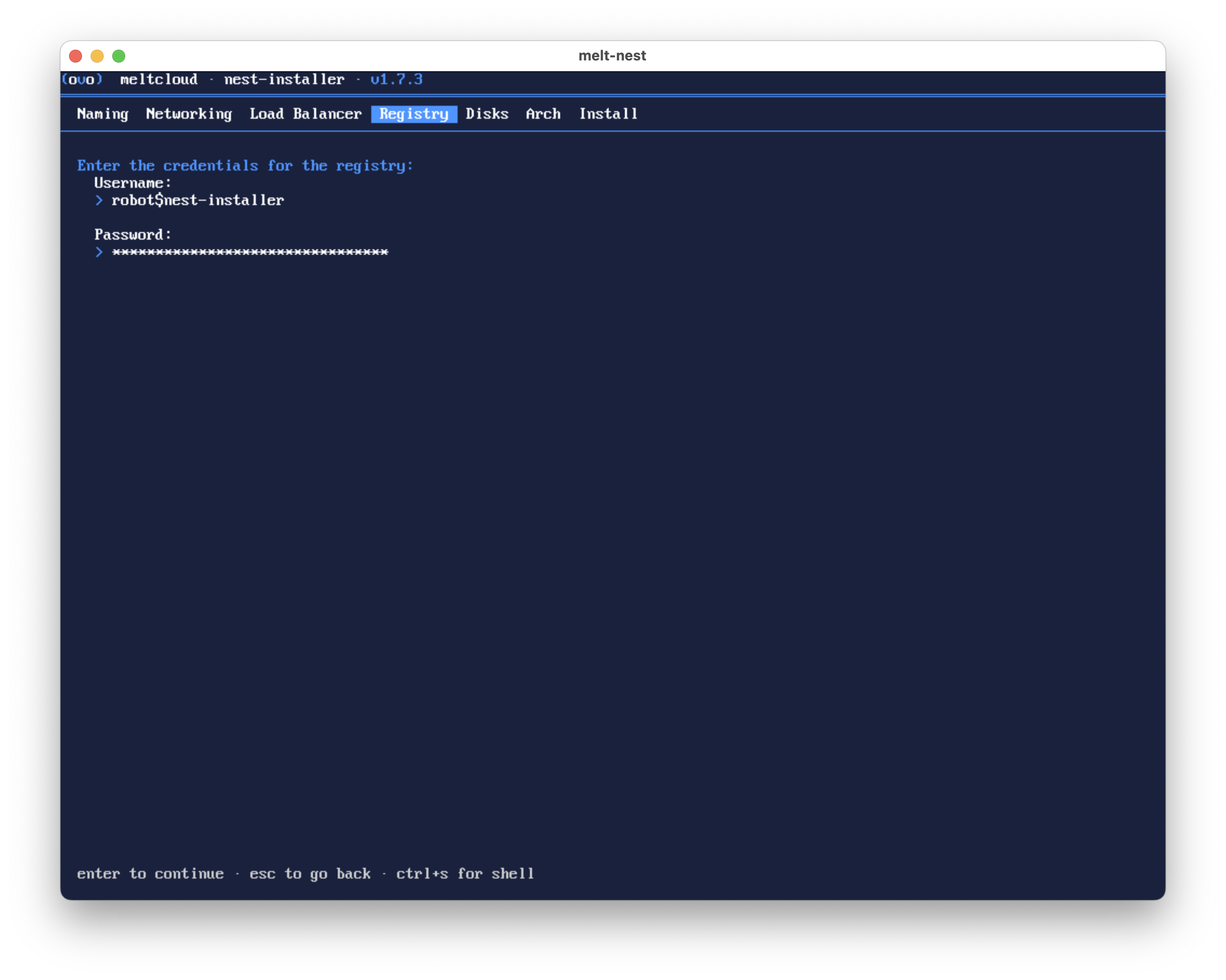

Credentials

Property	Description	Required
Username	Registry username	Yes
Password	Registry password (masked input)	Yes

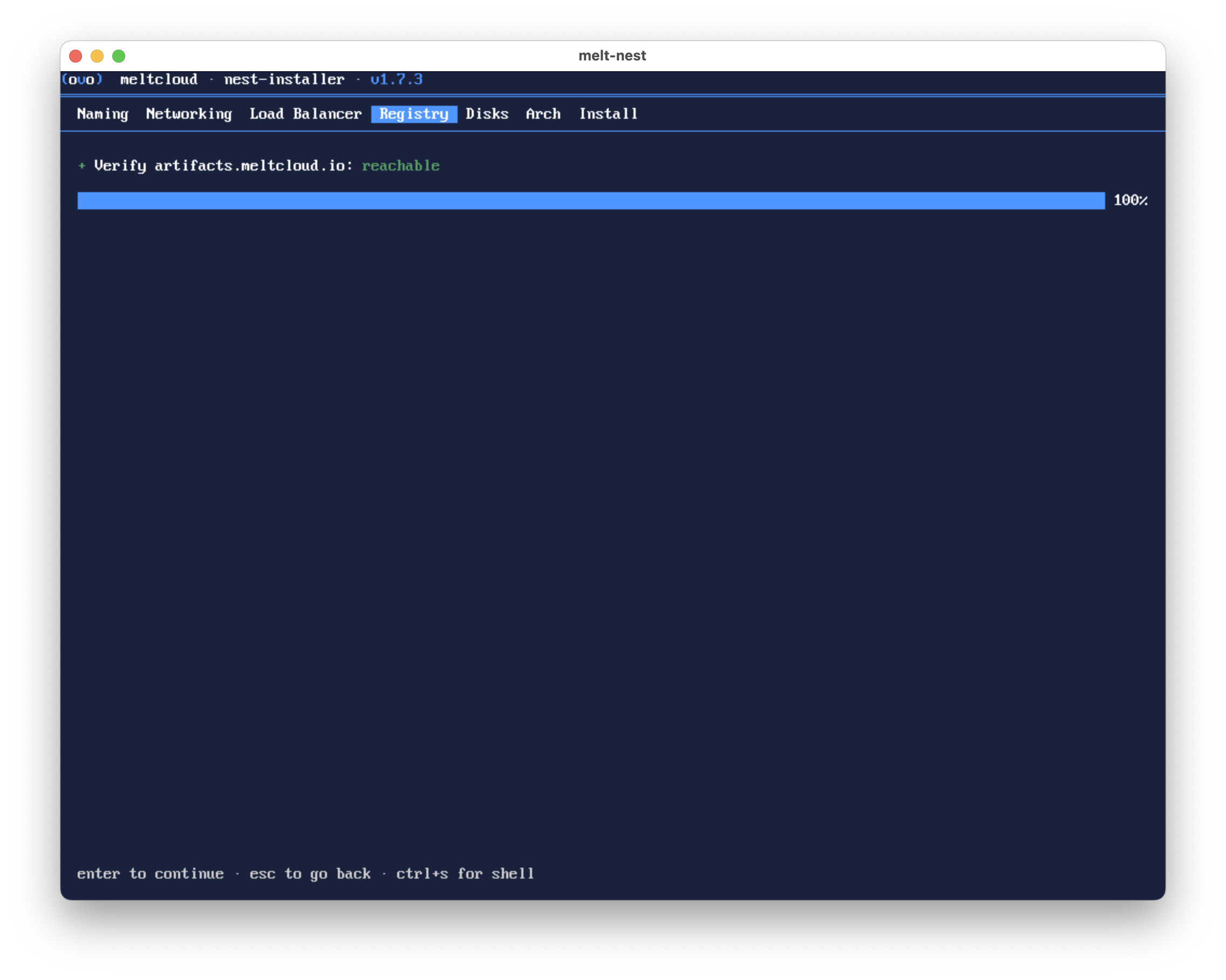

Registry Validation

The installer verifies connectivity and authentication with the configured registry.

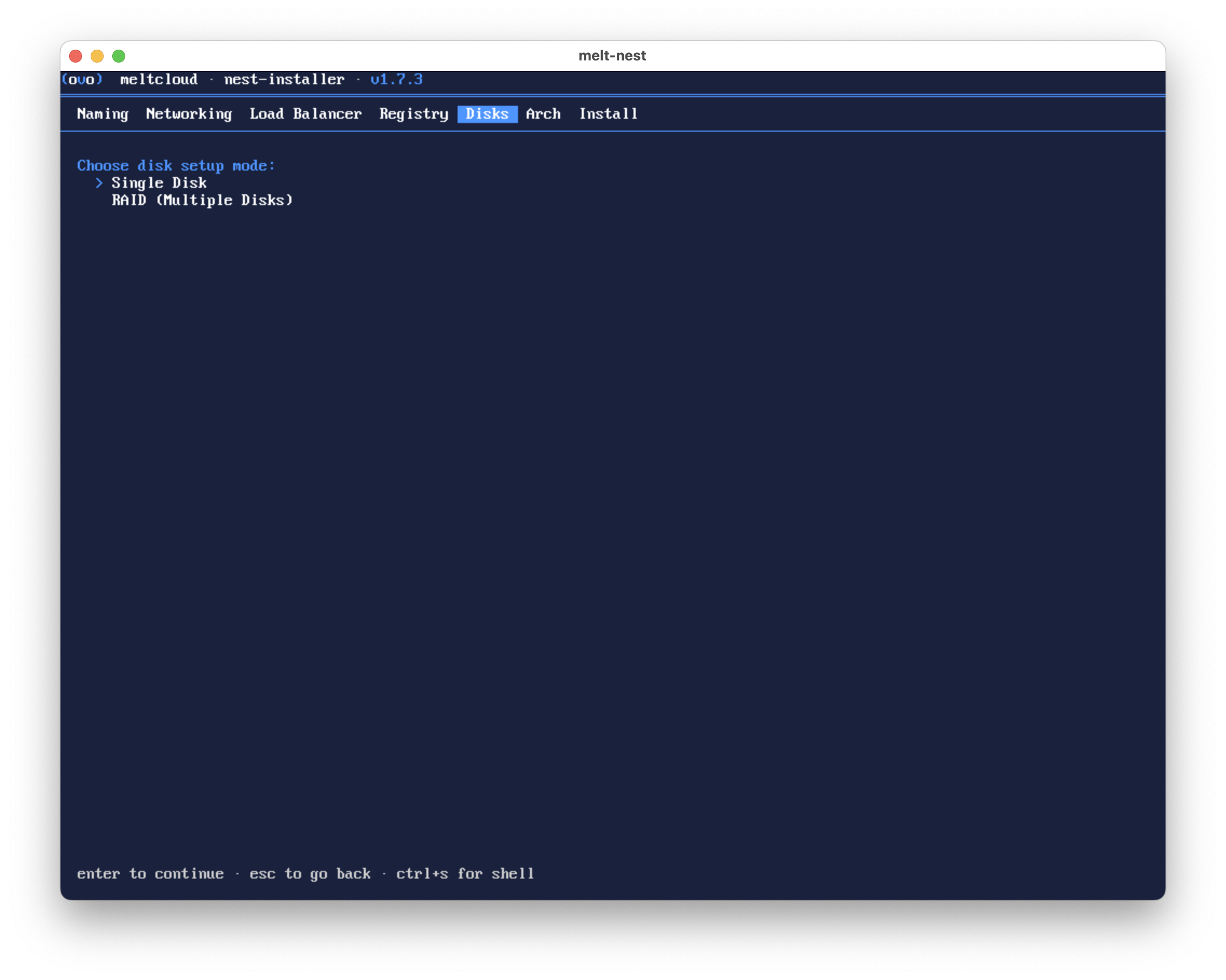

5. Disk Setup

Choose which disks Nest is installed to. The installer first asks for the layout (whether disks are mirrored, and where etcd lives), then for the concrete devices.

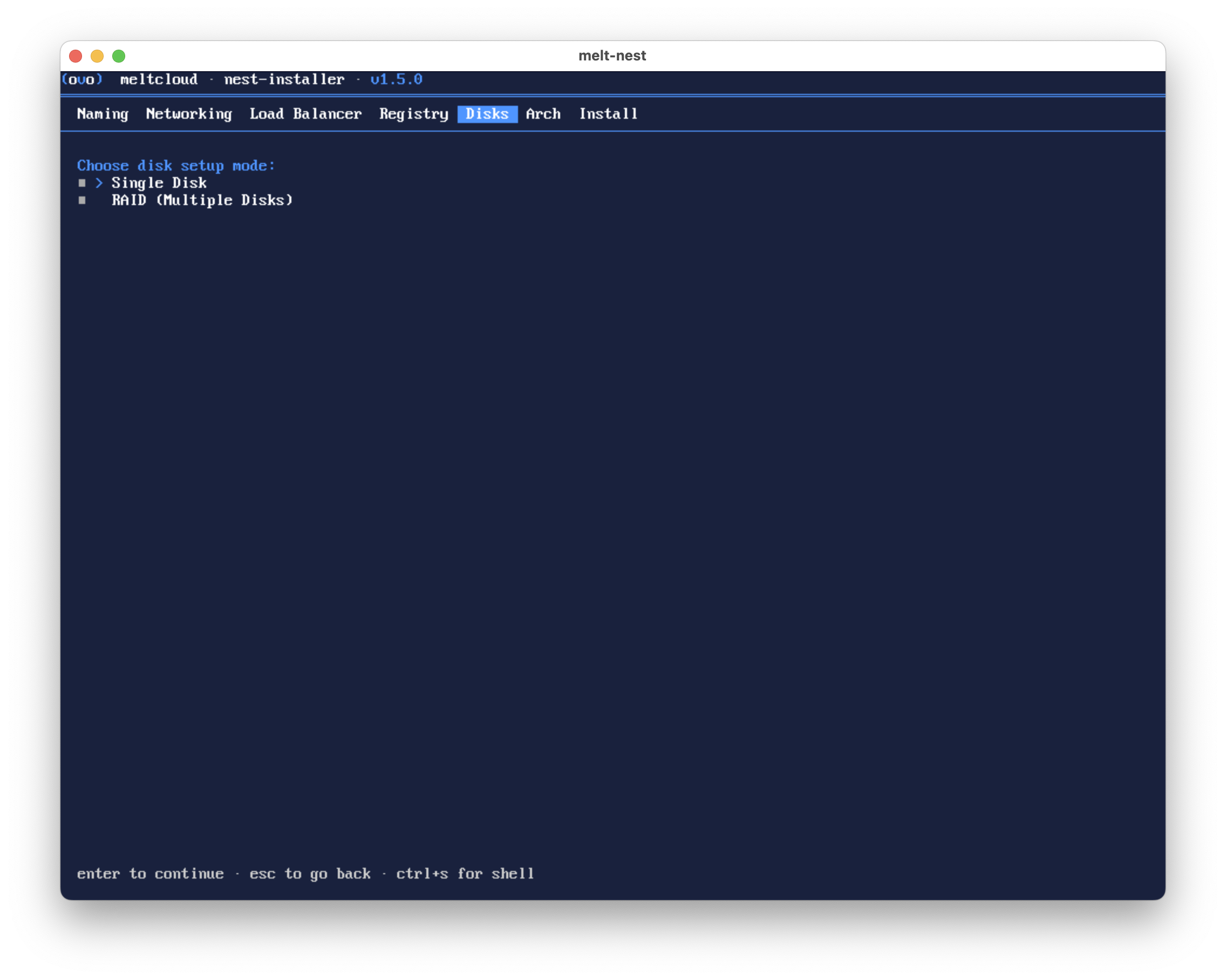

Boot Disk Mirroring

The boot disk holds the OS and the container images, plus etcd unless it is moved to a dedicated disk on the next screen.

Option	Description
No mirror: one boot disk	Install to a single boot disk.
RAID1 mirror: two boot disks	Mirror the boot disk across two disks. Both disks are bootable on their own, so the instance survives losing either of them.

WARNING

Mirror the boot disk for production. Without a mirror, losing that disk takes down the whole Nest instance, and replacing an instance is expensive: every etcd it hosts has to resync onto the new one.

etcd Placement

Option	Description
On the boot disk (default)	etcd shares the boot disk.
On a dedicated disk	etcd is moved off the boot disk onto a disk of its own.

WARNING

For production, place etcd on a dedicated disk and use a fast NVMe drive for it. Each hosted control plane runs its own etcd instance on the Nest, and etcd is highly sensitive to disk latency. See System Requirements.

etcd Disk Mirroring

Only asked if etcd is placed on a dedicated disk.

Option	Description
No mirror: one etcd disk	Use a single etcd disk.
RAID1 mirror: two etcd disks	Mirror the etcd disk across two disks.

WARNING

Mirror the etcd disk for production as well. Losing an unmirrored etcd disk takes down the instance just like losing its boot disk does.

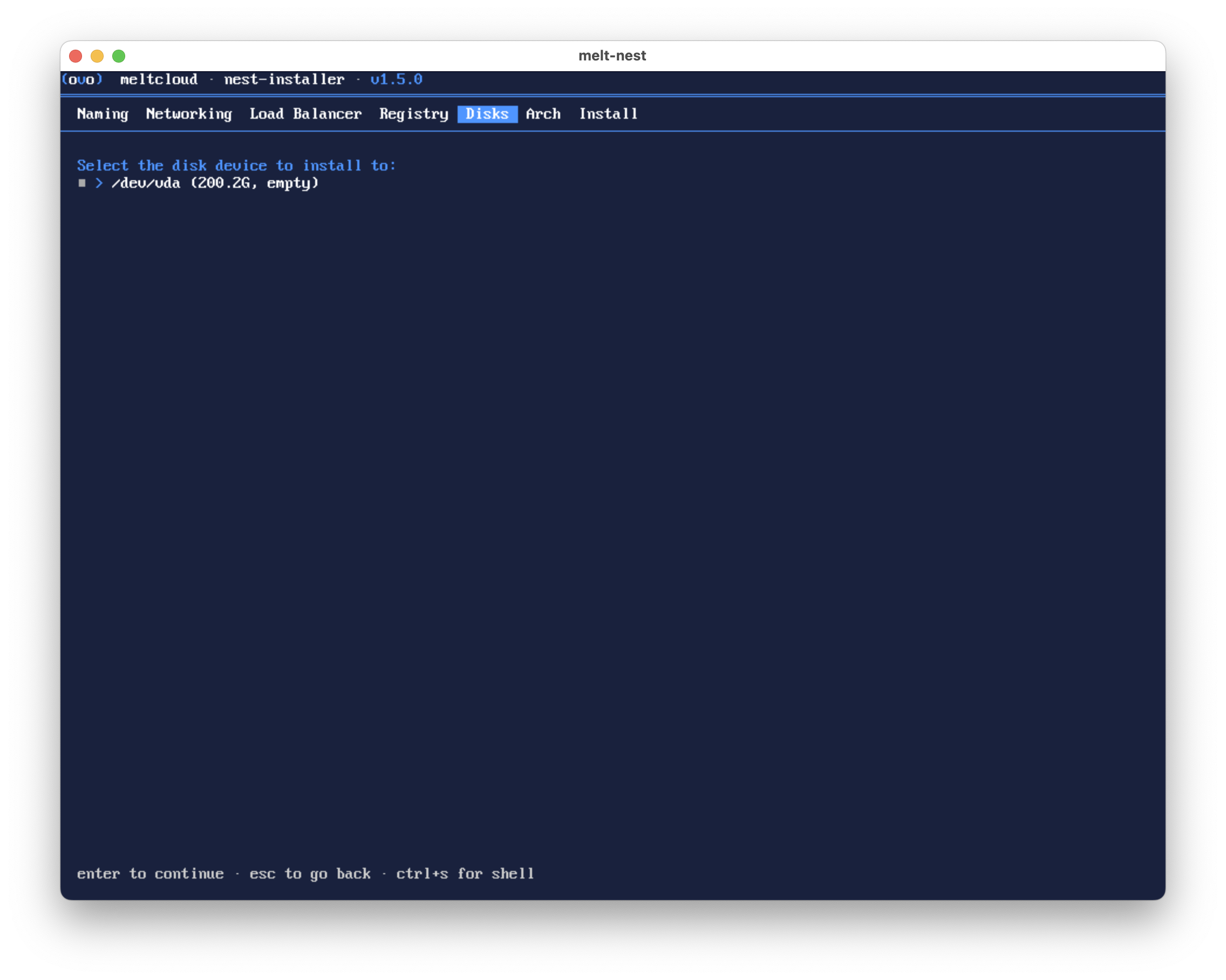

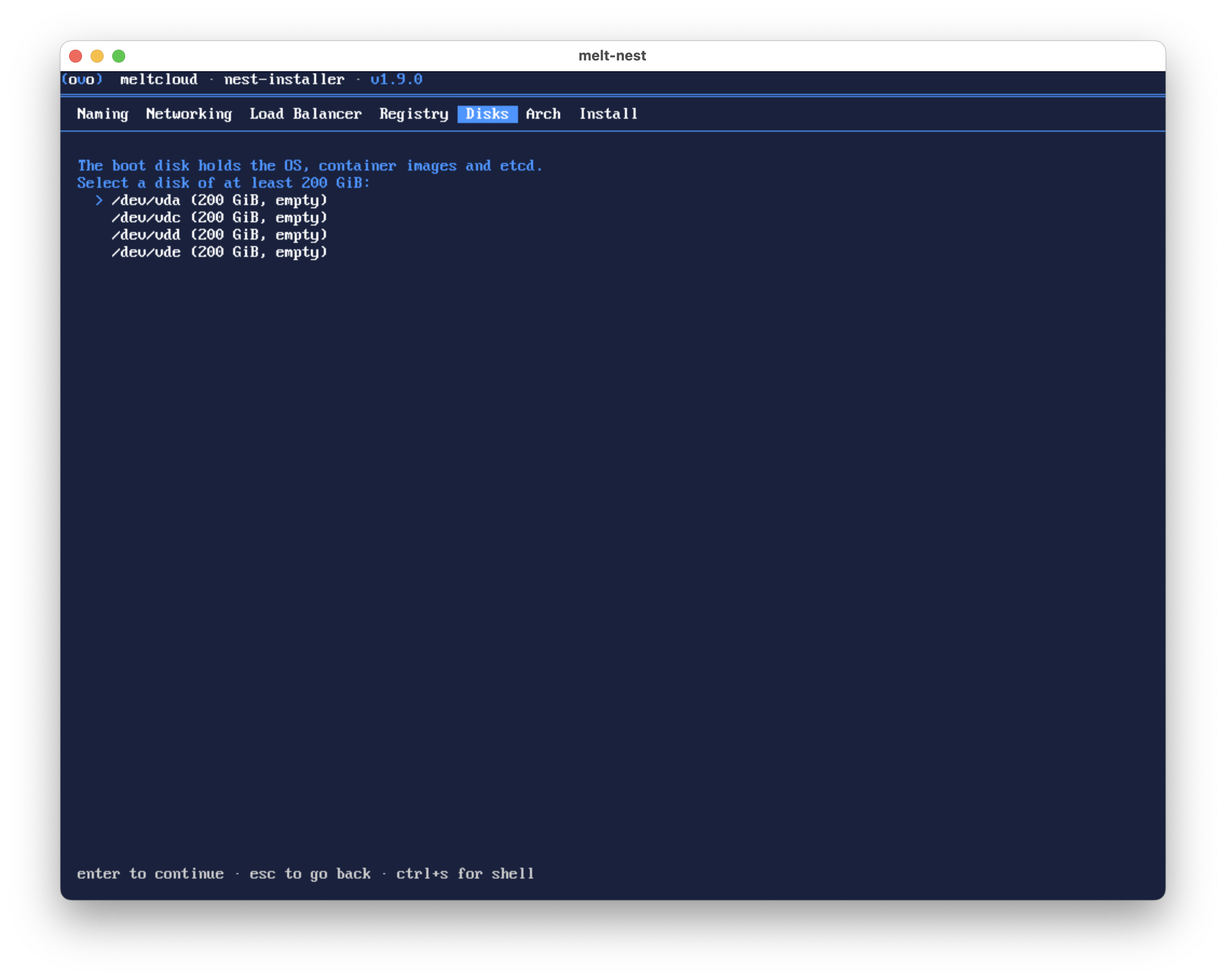

Disk Selection

The installer then asks for the devices, one screen per role: the boot disk, and the etcd disk if a dedicated one was chosen.

If the role is mirrored, exactly two disks must be selected. Disks already claimed by another role are not offered again.

Each entry is listed as path, size and partition status:

Status	Meaning
empty	No partitions found
contains meltcloud partitions	Previous Nest installation detected
contains unknown partitions	Non-Nest data on disk

The minimum size depends on the role, since a dedicated etcd disk takes part of the layout off the boot disk:

Disk	Minimum size
Boot disk, etcd on the boot disk	200 GiB
Boot disk, etcd on a dedicated disk	120 GiB
Dedicated etcd disk	100 GiB

In a mirror, each of the two disks must meet the full minimum, not half of it.

WARNING

The installer will wipe every selected disk. All existing data will be lost.

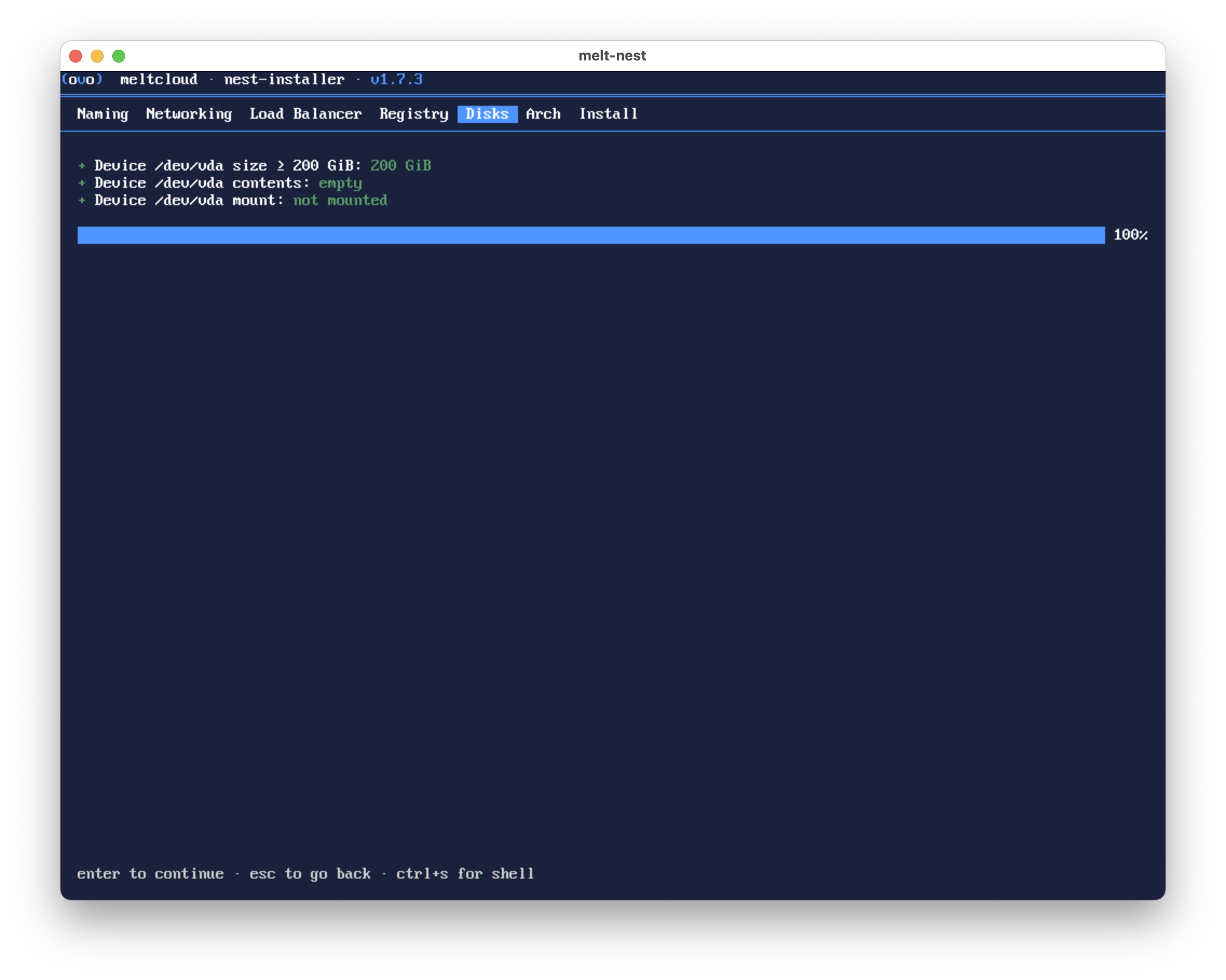

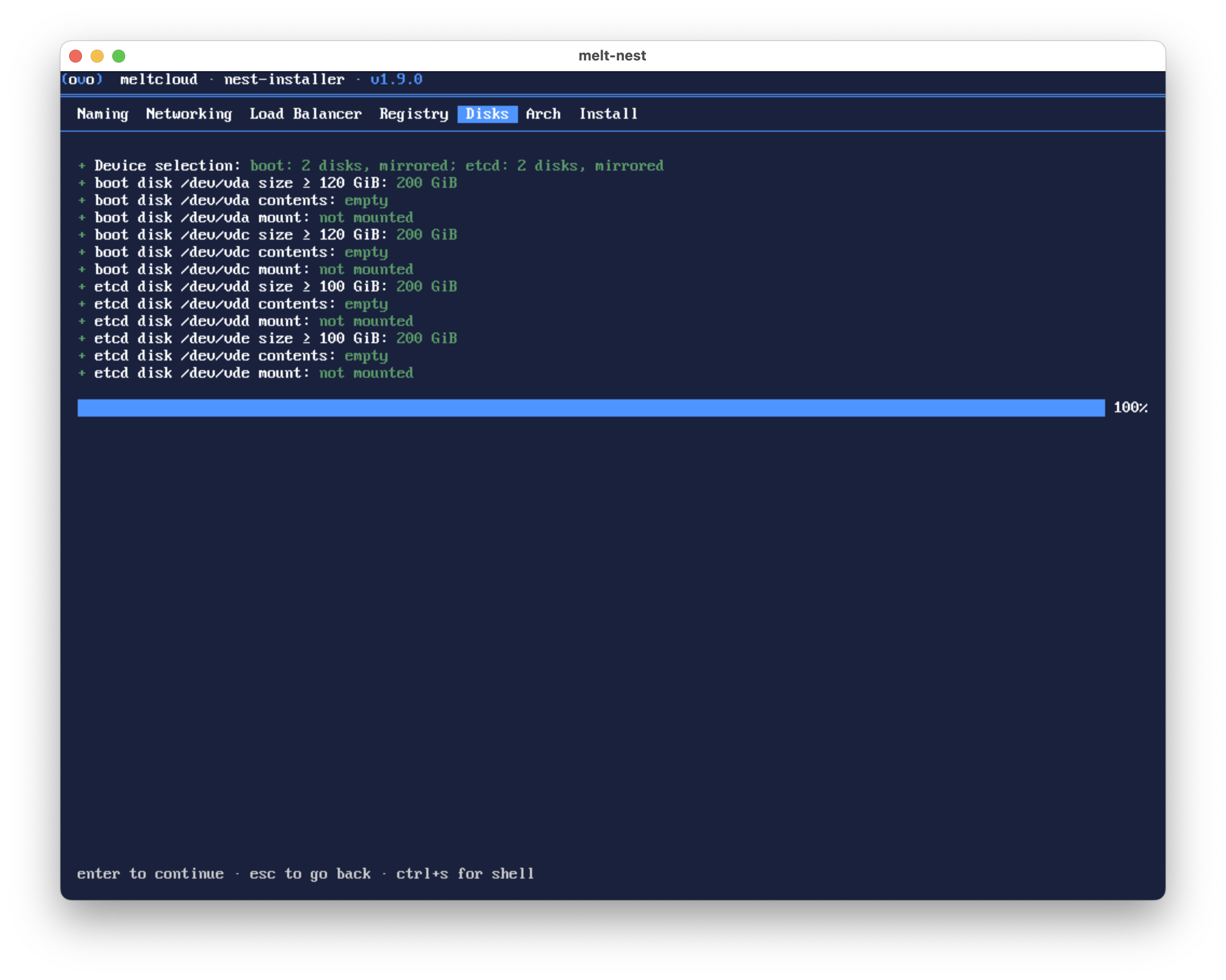

Disk Validation

The installer checks every selected disk:

• Disk capacity meets the minimum for its role
• Partition status (existing Nest or unknown partitions are reported as a warning)
• Disk is not currently mounted (mounted disks will be unmounted if you proceed)

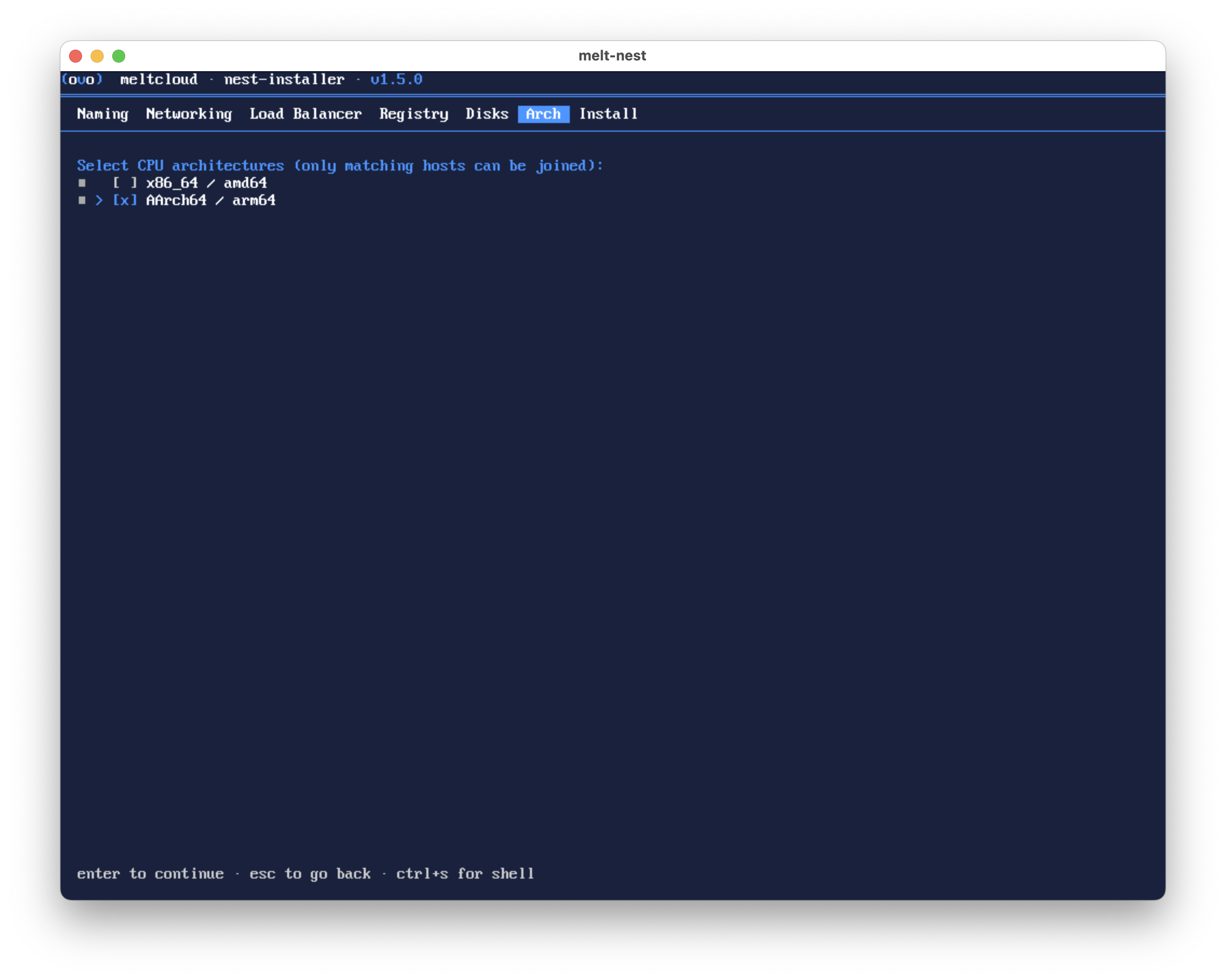

6. Supported Architectures

Select which CPU architectures can enroll as workers to this Nest.

Option	Description
x86_64 / amd64	Intel and AMD processors
AArch64 / arm64	ARM processors (e.g. Apple Silicon, Ampere)

At least one architecture must be selected. The current host architecture is selected by default.

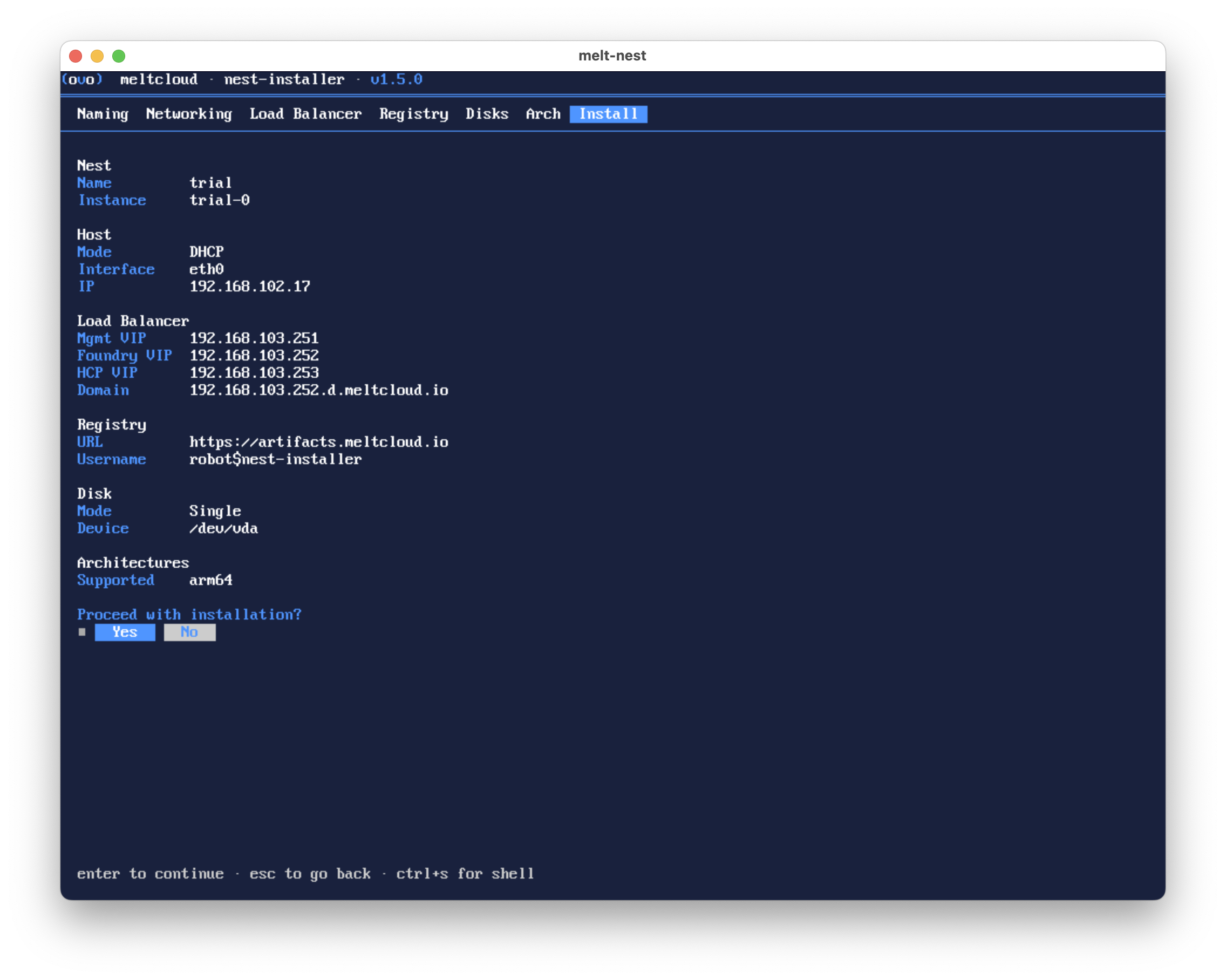

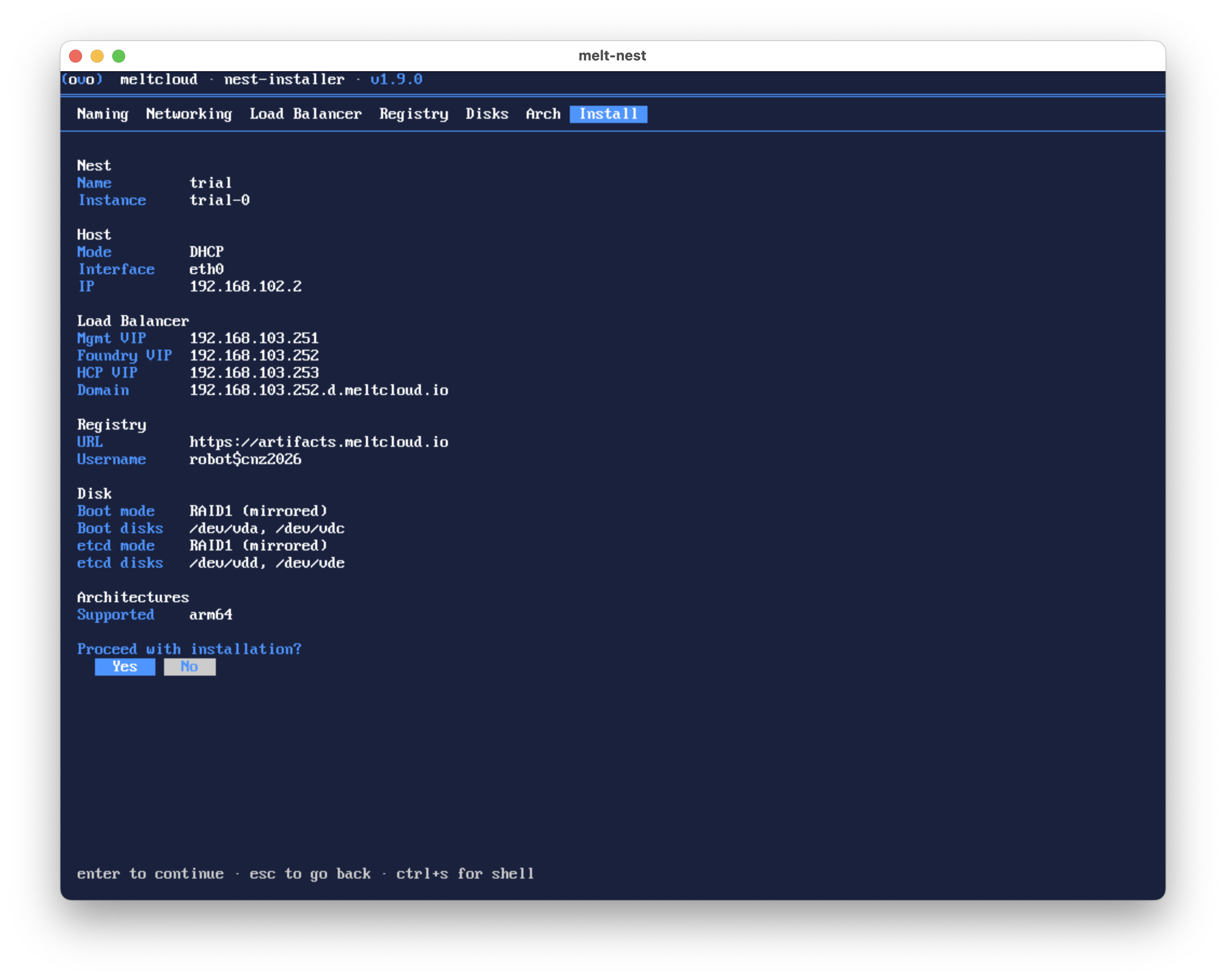

7. Confirm and Install

Review all configuration and confirm to start the installation.

The summary shows all configured values grouped by section (Nest, Host, Load Balancer, Registry, Disk, Architectures).

WARNING

Once the installation starts, it cannot be aborted as disk writes are in progress.

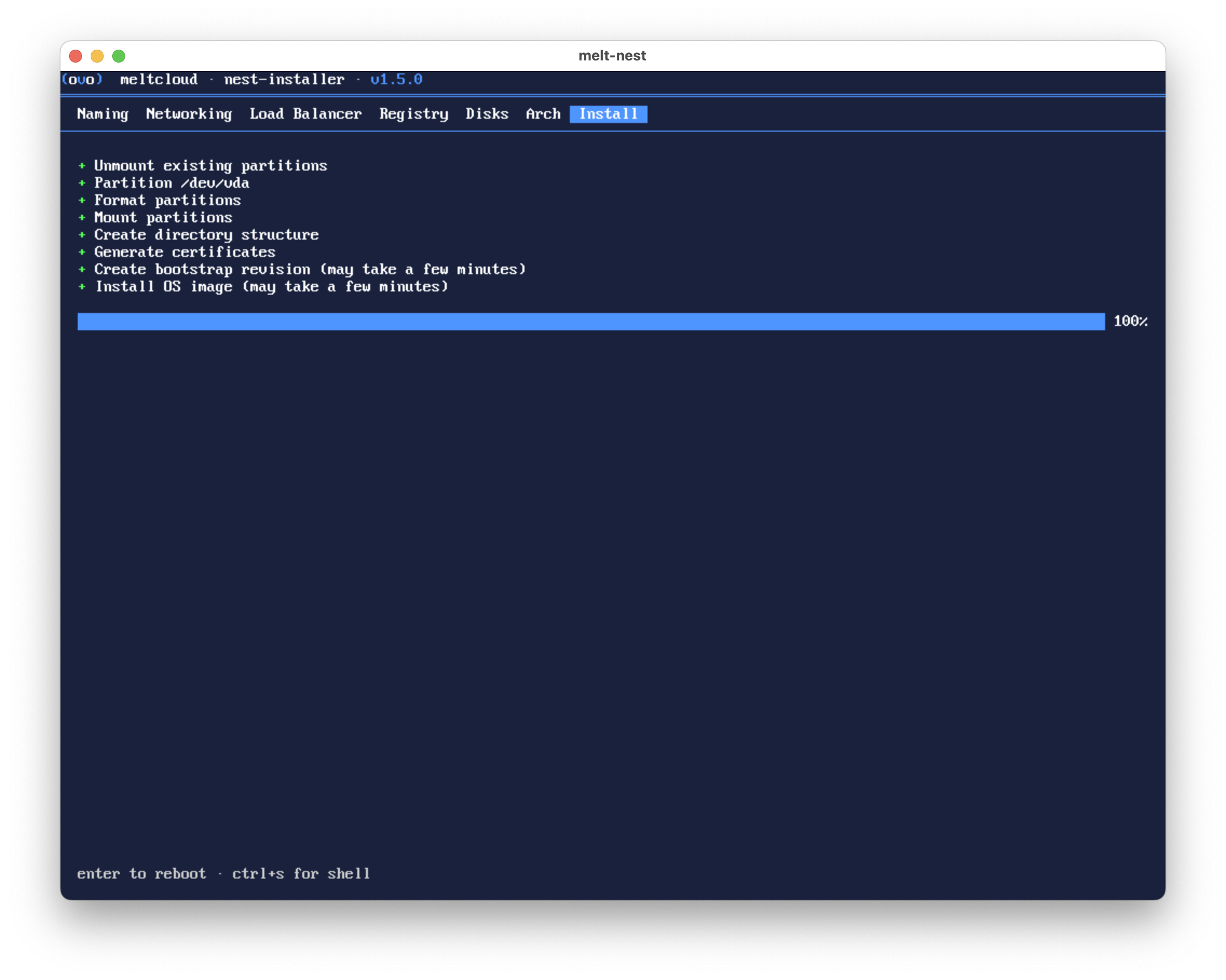

After confirmation, the installer partitions the disk, installs Nest and reboots the machine. After reboot, the Foundry (the web UI and API) is bootstrapped automatically.

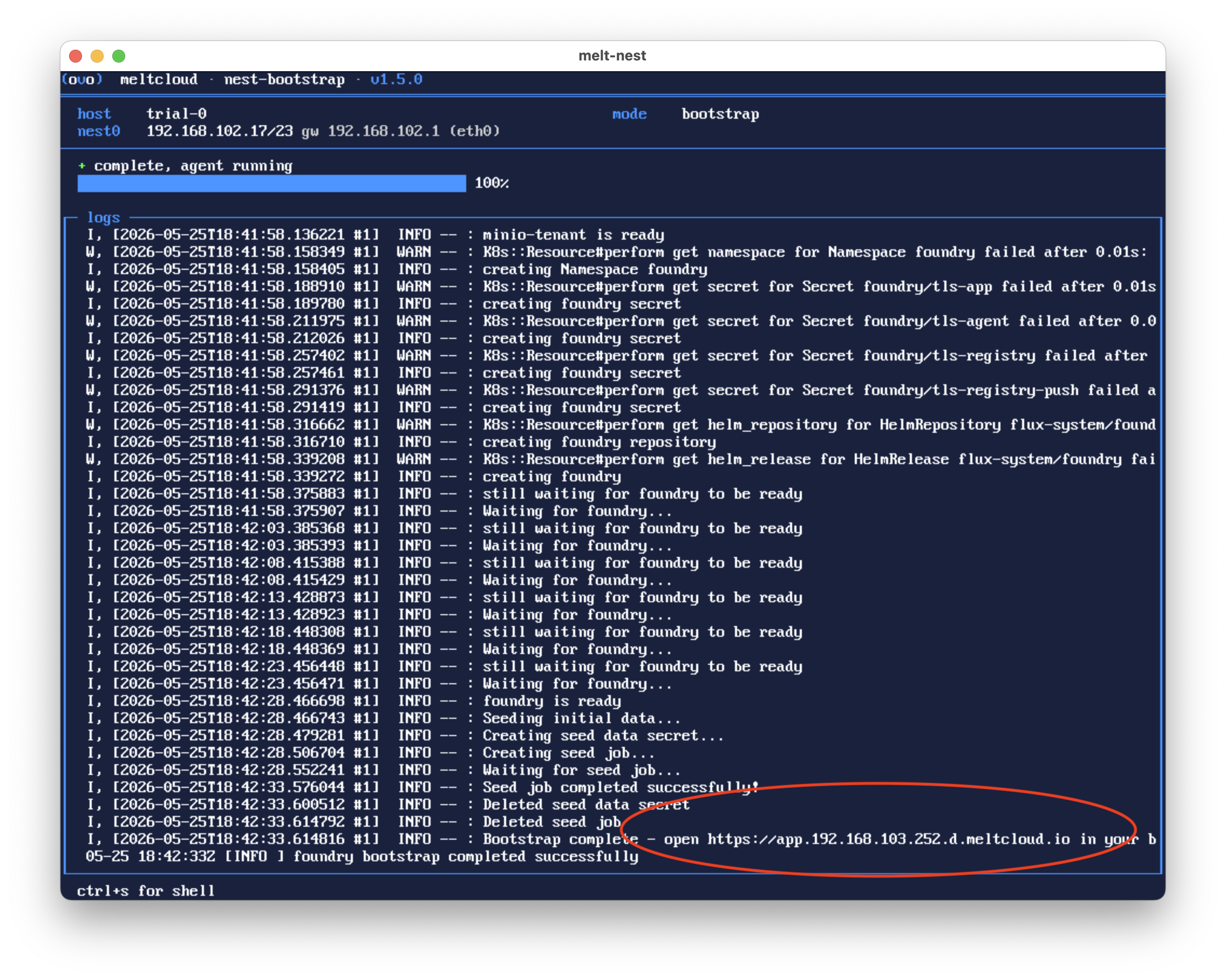

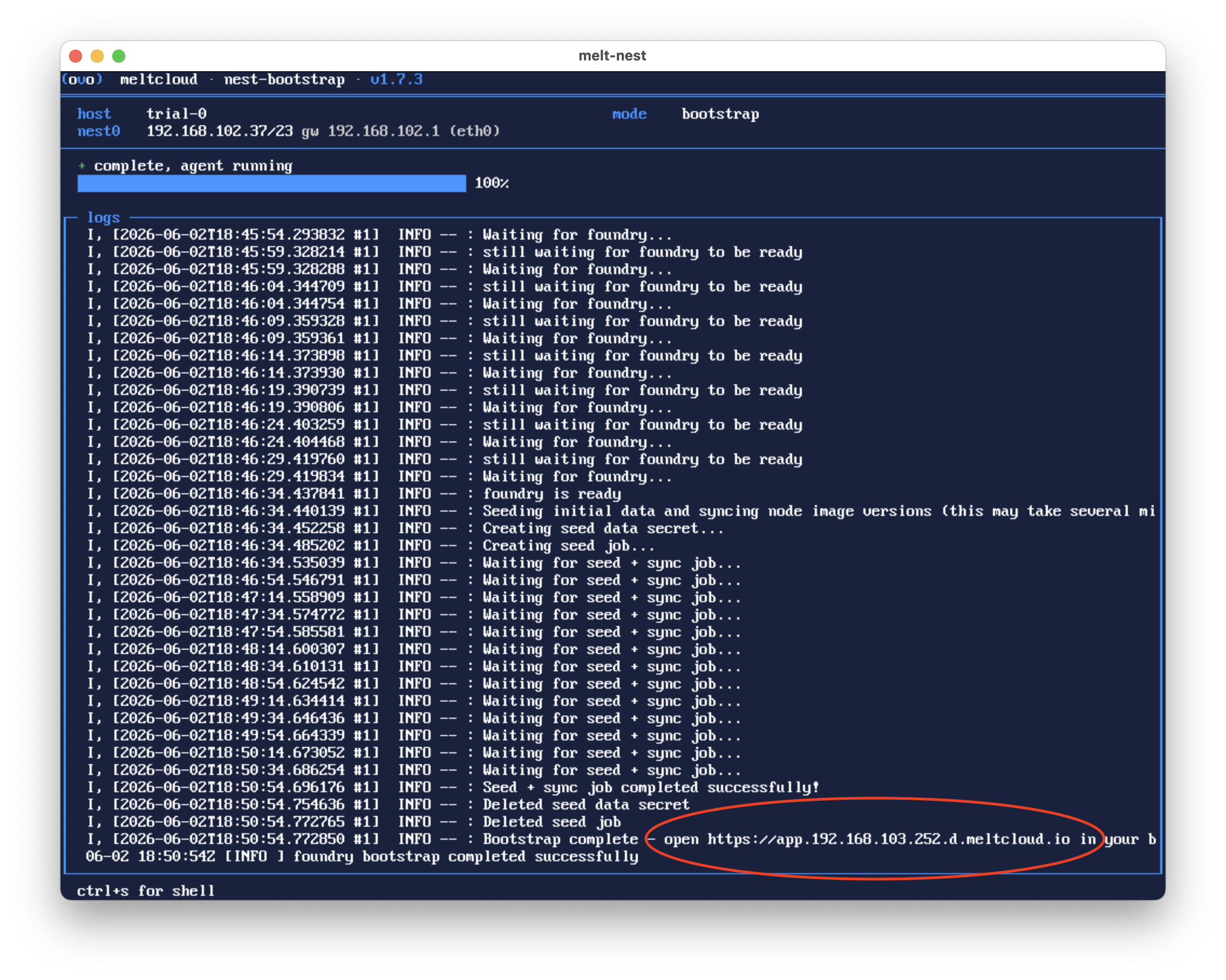

Once bootstrapping is complete, the Foundry URL is printed on screen. Open it in your browser to access the Foundry.

Keyboard Shortcuts

These shortcuts are available throughout the installer:

Shortcut	Action
Ctrl+S	Drop to a console (for debugging)
Ctrl+L	Force terminal repaint
Esc	Go back to the previous step (not available during installation)

Troubleshooting

Console Access

Press Ctrl+S during the installer to drop to a console. Log in with user core and password meltcloud.

To investigate the system state:

# check Nest service logs
journalctl -u nest-*

# check Kubernetes pod status
sudo -i
kubectl get pods -A

Cannot Resolve *.d.meltcloud.io

Some routers (e.g. Sunrise, Orange) block public domains like d.meltcloud.io from resolving to private IP addresses. This is called DNS rebinding protection. The Nest installer's DNS validation will fail with an error like "Your ISP may block public domains resolving to private IPs". Go back to the Foundry Domain screen and enable Write static DNS entries on all hosts. This makes the Nest and all enrolled machines resolve the required subdomains internally via CoreDNS, bypassing the ISP's DNS entirely.

Your browser (and tools like Terraform) will also be unable to resolve the Foundry URL unless you use DNS-over-HTTPS. Access Foundry directly via its VIP address (e.g. https://192.168.1.252) or add a local /etc/hosts entry for app.<domain> pointing to the Foundry VIP.

Kubeadm Fails to Reach Its Own IP After Reboot

If the Foundry won't start after Nest has rebooted because kubeadm cannot reach its own IP, the hypervisor's DHCP or virtual network likely assigned a new IP or subnet. See the platform-specific troubleshooting for workarounds:

• Nest Breaks After Host Reboot (Hyper-V)
• Nest Breaks After Reboot (macOS)

Accessing Foundry from a Cloud VM

If you're running the Nest inside a cloud VM (e.g. Azure, AWS, GCP), the Foundry URL resolves to a private IP that isn't reachable from your local machine. Use an SSH SOCKS proxy to access it through the VM:

ssh -D 1080 user@<cloud-vm-public-ip>

Then configure a browser to use localhost:1080 as a SOCKS v5 proxy. To avoid changing your default browser's settings, use a separate browser profile:

• Firefox (recommended): go to about:profiles, click Create a New Profile, and launch it. In that profile, go to Settings → General → Proxy settings, select Manual proxy configuration, set SOCKS Host to localhost, Port to 1080, select SOCKS v5, and check Proxy DNS when using SOCKS v5. Firefox has its own proxy settings, so this won't affect your other browsing.

TIP

Chrome and Edge delegate proxy configuration to the operating system on both macOS and Windows, so they cannot be configured per-profile. Use Firefox for the SOCKS proxy approach.

Navigate to the Foundry URL in the proxied browser profile. The traffic is tunneled through the cloud VM and reaches the private IP.
